GreatBase GBHW-625 Automatic Bridge Cutting Machine Cut Head 45°Tilting
- Great Base
- CHINA
- 30 days
- 20sets per month
GreatBase GBHW-625 is automatically controlled by PLC (or manually controlled). GB machine The cutting size is input via computer terminal. Users can set the quantity, processing thickness, cutting thickness and feeding speed according to requirements. GBHW-625 is equipped with infrared tool setting gauge, to accurately adjust the cutting size. The crosswise feeding speed and spindle speed is controlled by frequency converter. Mono bridge cutting machine is used for stone slab cutting. In terms of structure, Mono structure is different with the ordinary infrared bridge cutting machine, which has stonger steel frame,better stability, GB it has better performance with high cutting efficiency for cutting hard stone (granite, basalt, marmoglass and nanoglass, etc.)
About Us
Xiamen Great Base Co.,LTD,We are a professional enterprise specializing in the production and operation ofstone processing machinery and equipment.We mainly provide various processing machinery and equipmentin stone factories,as wellas a complete set of stone mining plans,construction and expansion of stone processingfactories of differentsizes.The main products include;GBHW series four axis/five axis CNCbridge cutting machine/bridgeedge cuttingmachine,GBQQJ series gantry bridge hydraulicmulti blade stone cutting machine,GBLMseries Gantrytype cutting machine,GBHW series Mono block bridge cutting machine,3-axis machining center,GBDM Polishing machine series,etc.The product has superior performance and reasonable structure,and canprovide the mostsuitableequipment solution accordig to customer needs.The main personnel of the companyhave beenengaged in the stone machine industry for nearly 20 years,exported to more than 70 countries andregionsaround the world.We take part in several international professional stone exhibitions,serving nearly10000customers.We hope we can work together and grow together with all of new and old friends in all overtheworld.Any inquiry anyquestion,please call/email us,and we also warmly invite you to visit us,we hope we can worktogether to get WIN=WINsituation.Any inquiry will be welcome
Prouduct informarion

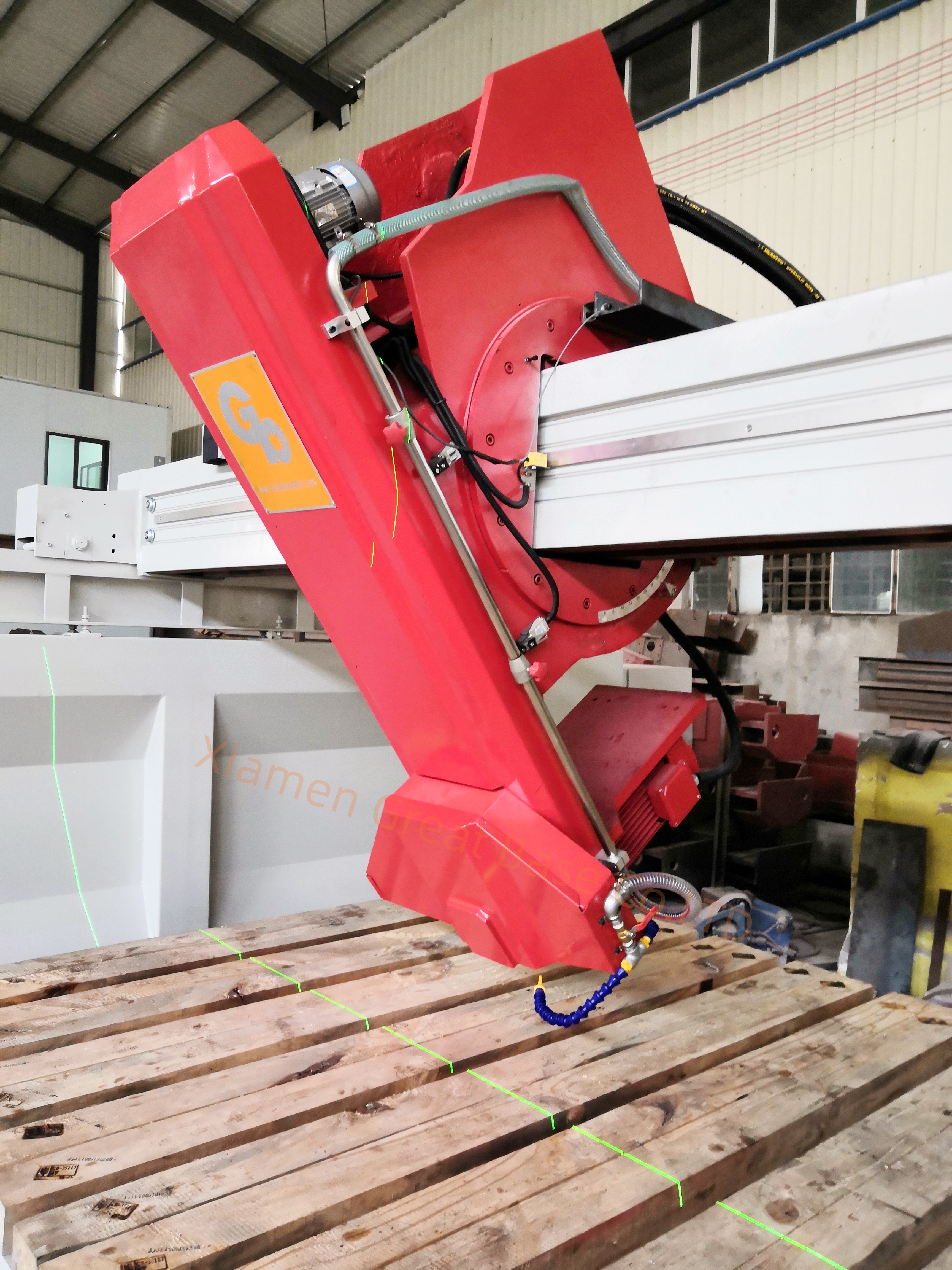

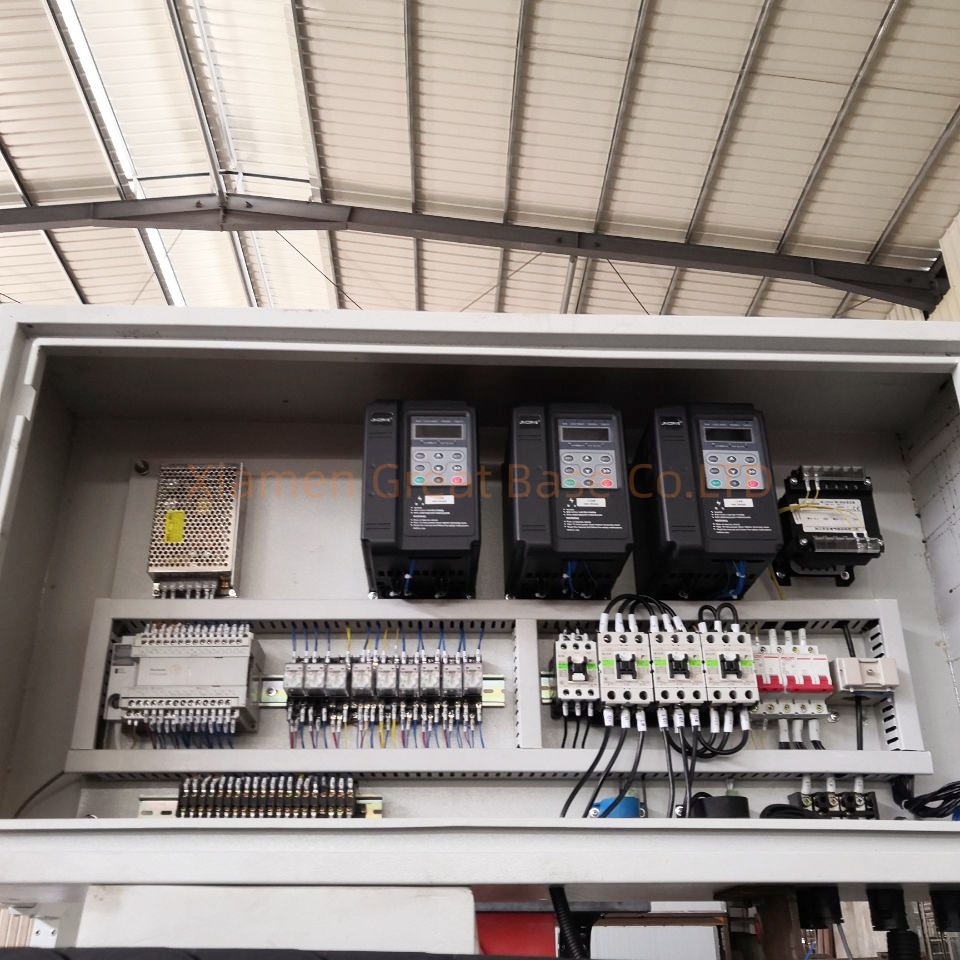

This machine is bridge type, cutter head can tilt 45degree, up/down by leadscrew, with 3 inverters, mainly used for counter tops processing.
Technical Specifications
| Name | Unit | GBHW625 | ||||
| Blade diameter | mm | D625 | ||||
| Main motor | kw | 18.5 | ||||
| Max cutting size | mm | 3200*200*200 | ||||
| Worktable rotating angle | 90 or 360° | |||||
| Weight | kgs | 6200 |

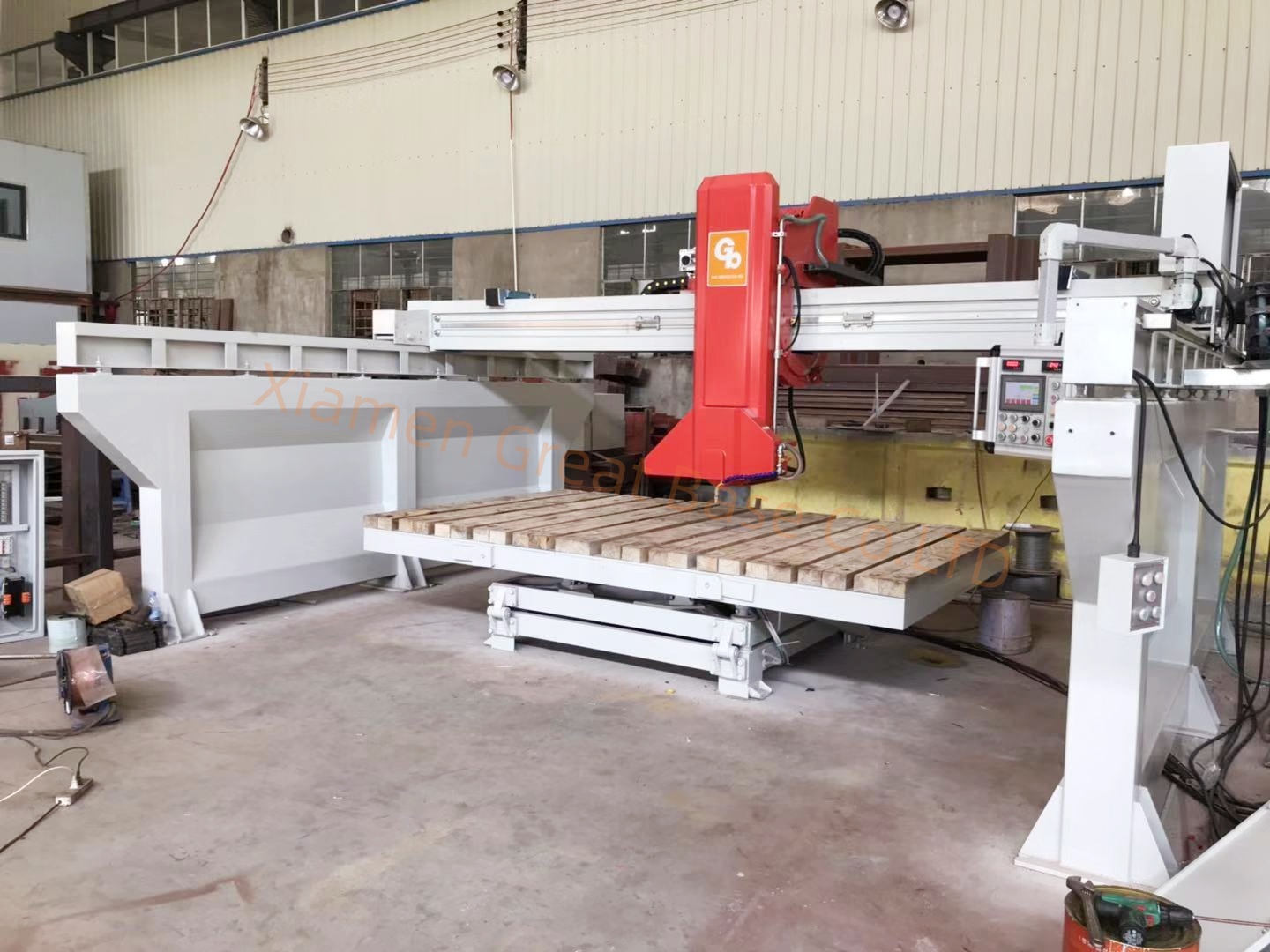

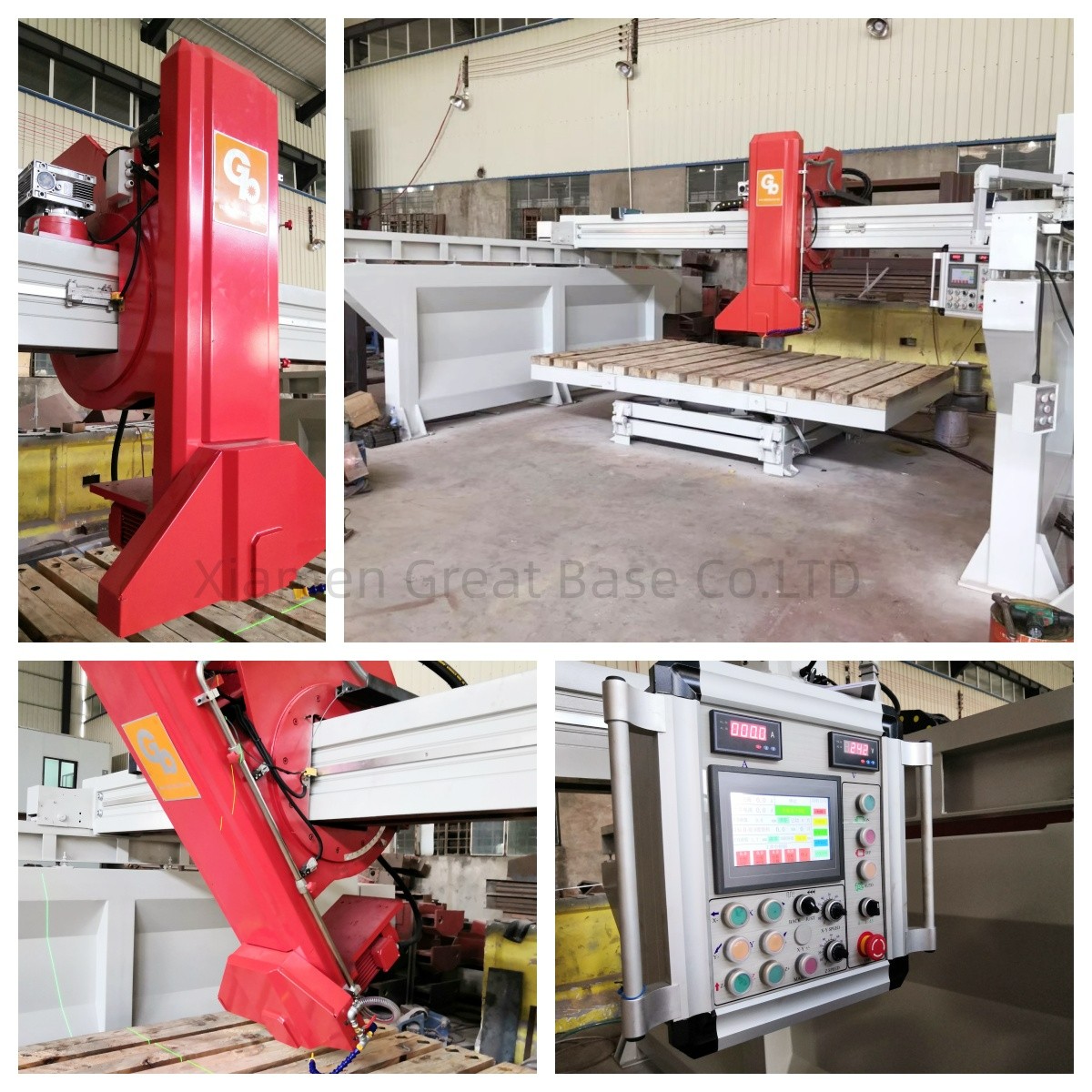

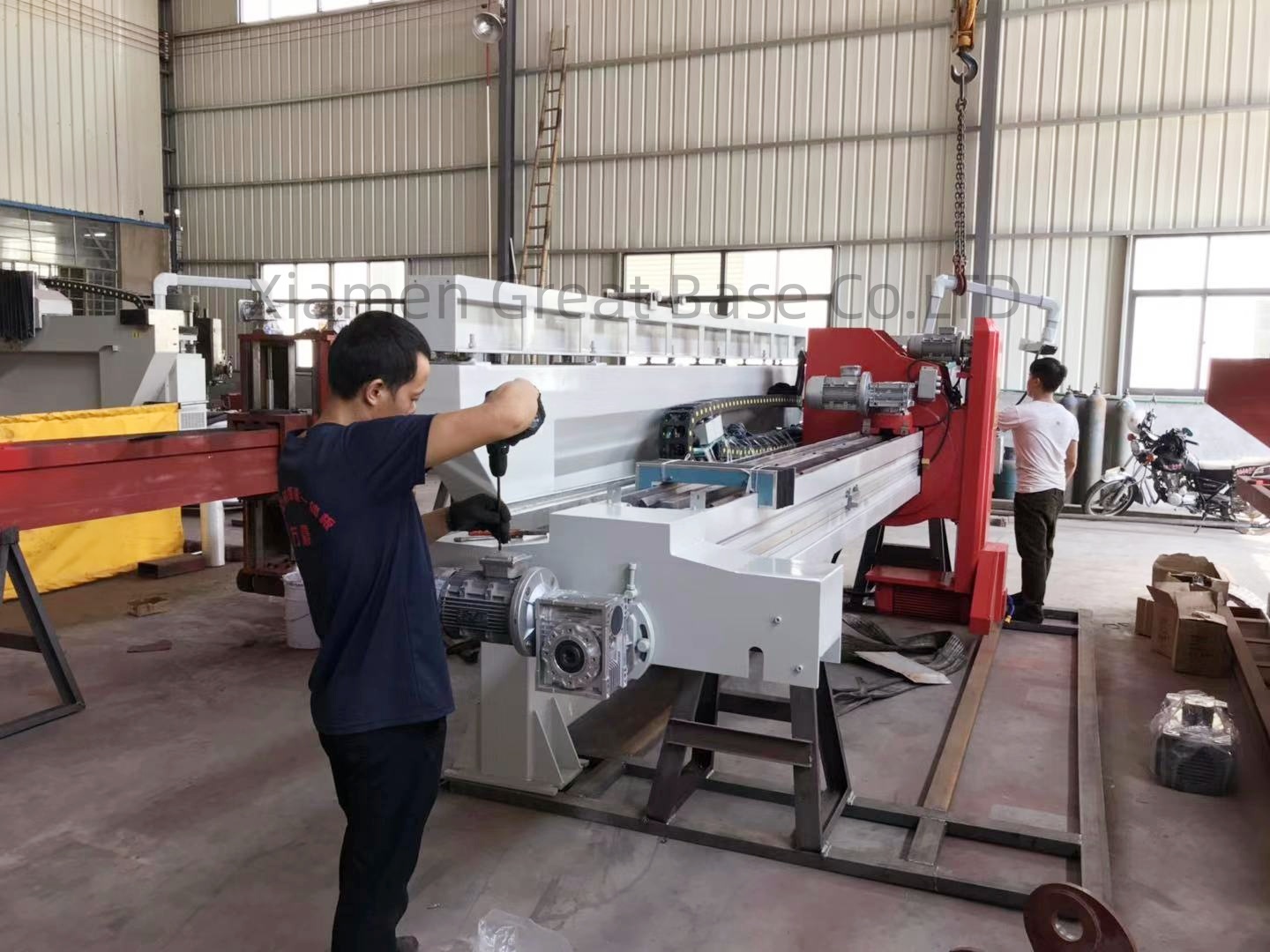

Product display

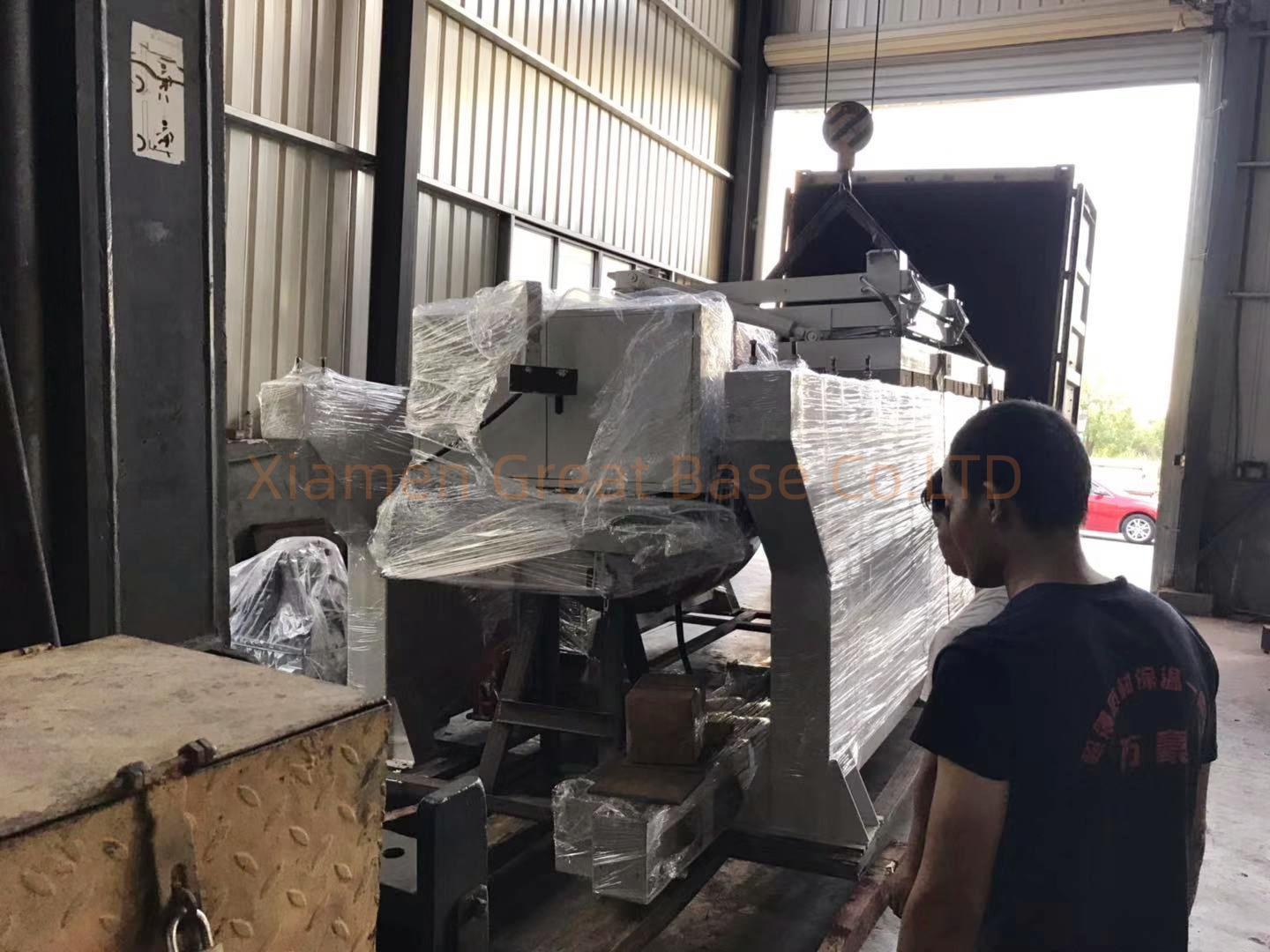

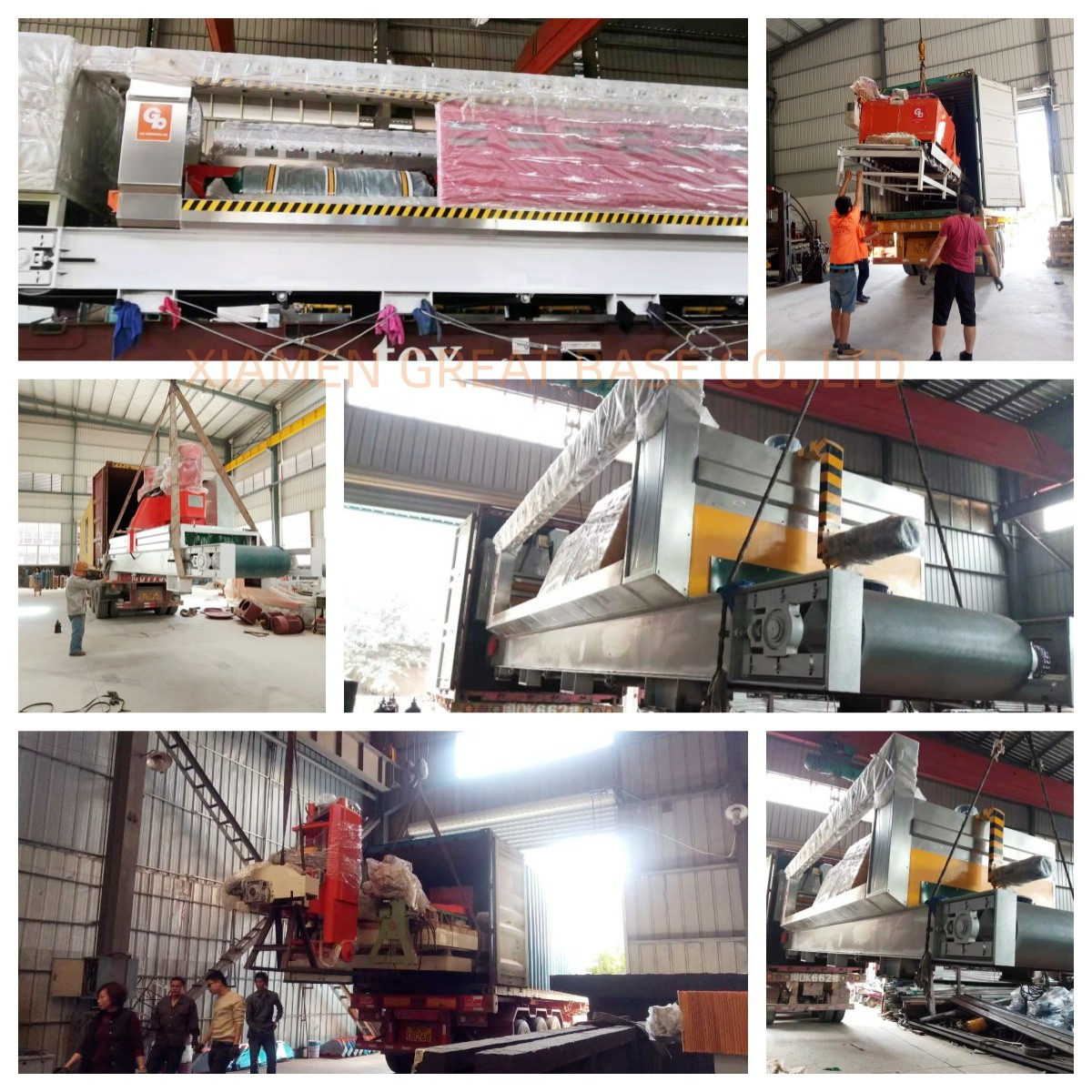

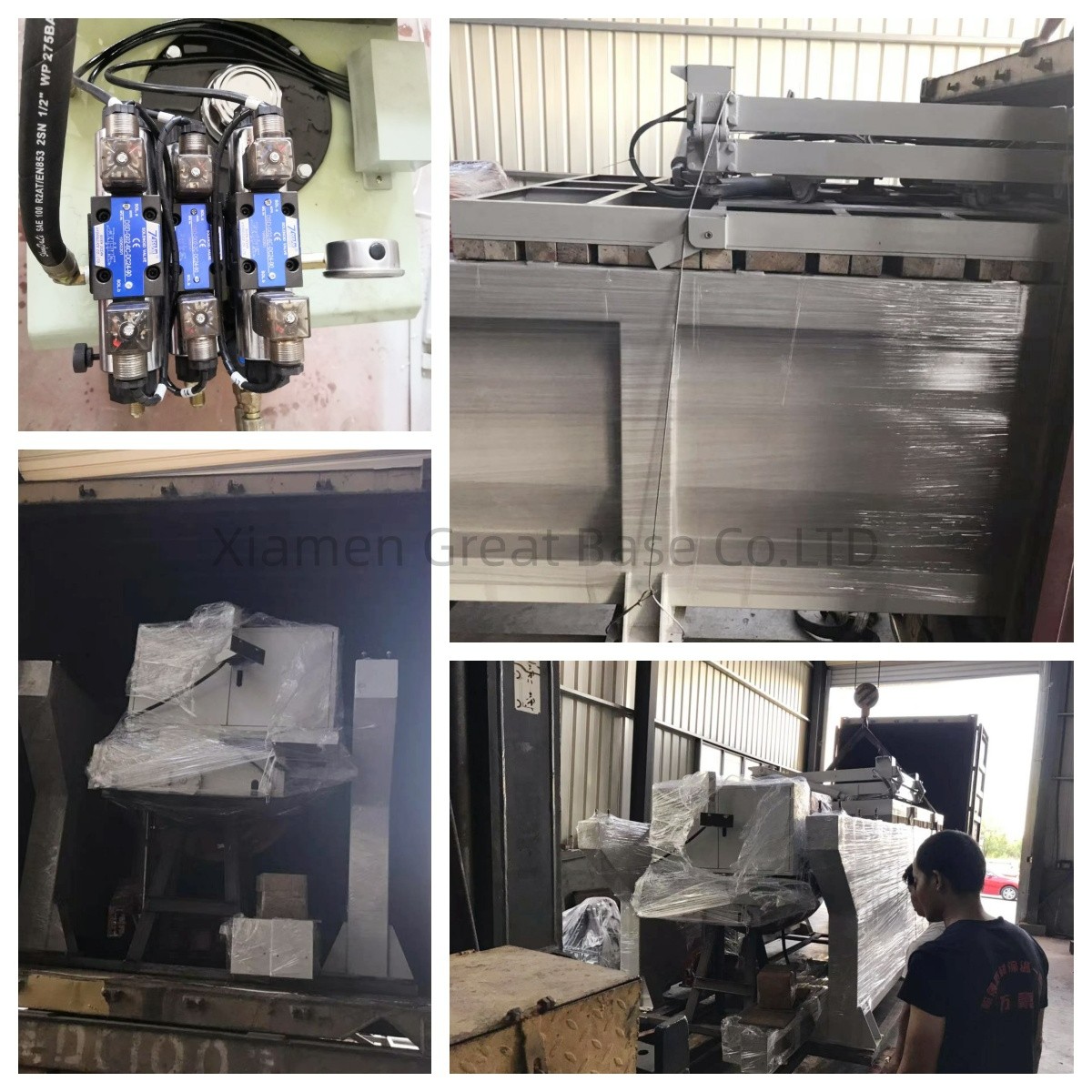

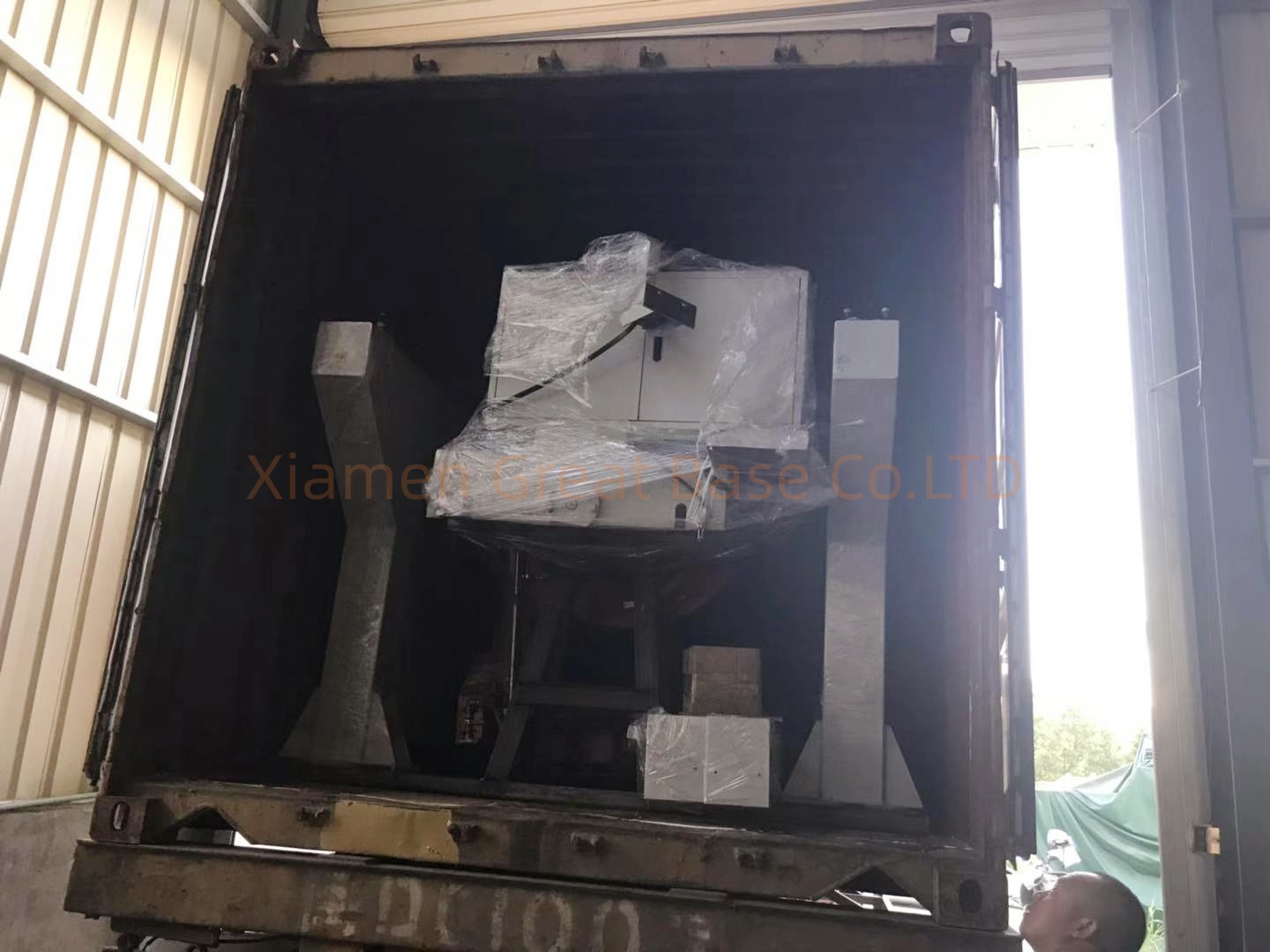

Factory container loading display
Exhibition display
