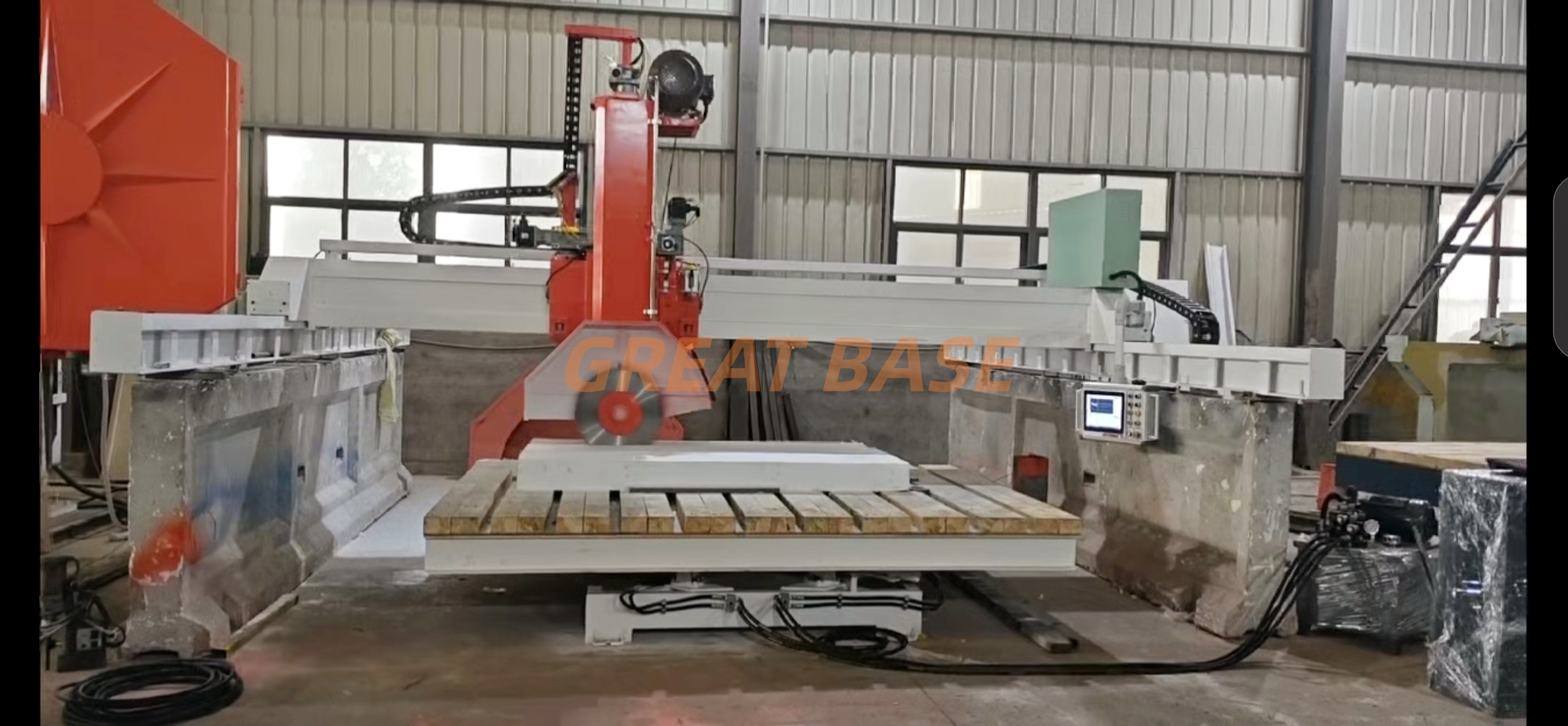

GreatBase GBHW-900T Automatic 4axis Bridge Saw

GreatBase GBHW-900T Automatic 4axis Bridge Saw

Brand GBHW-900T
Product origin CHINA
Delivery time 30 days
Supply capacity 20sets per month

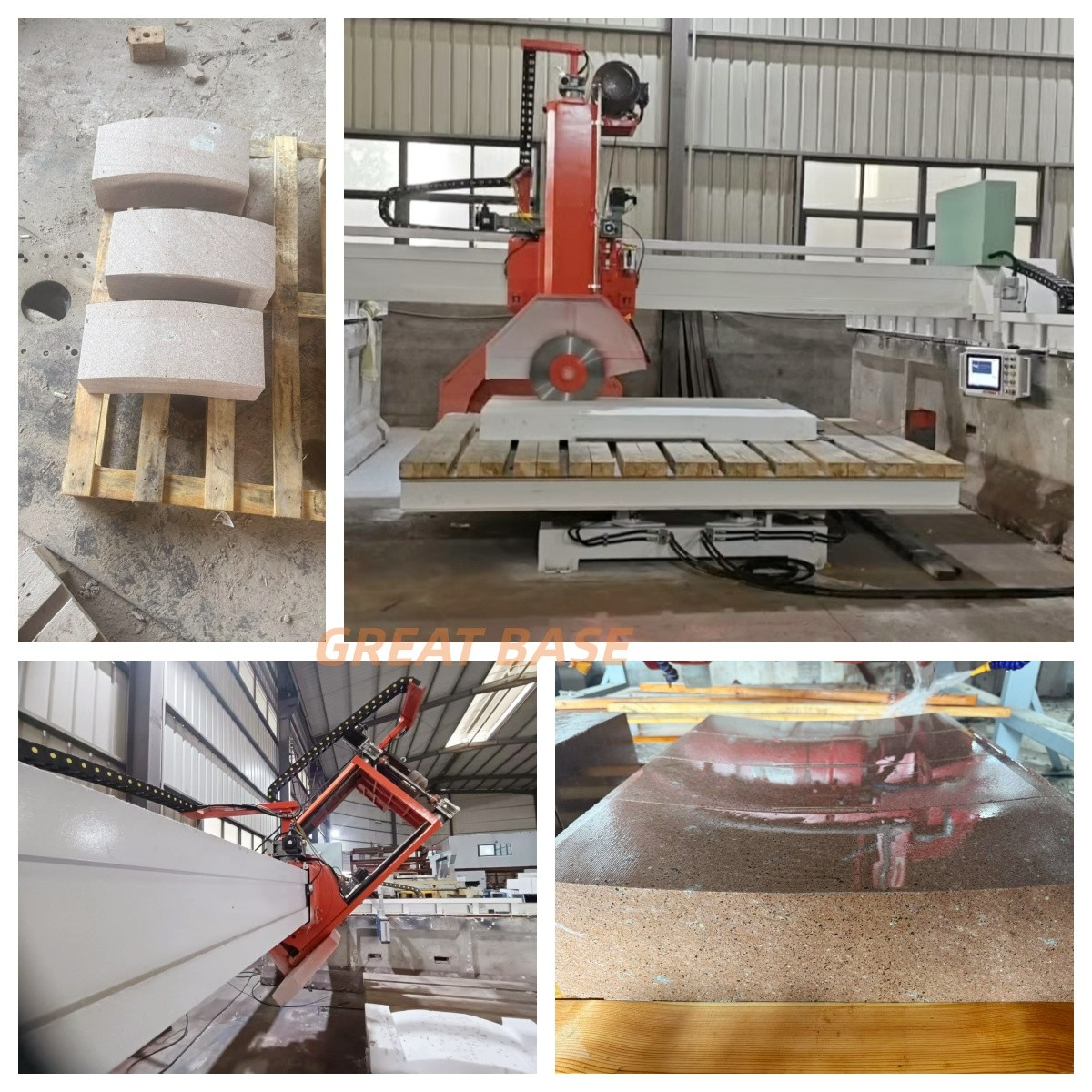

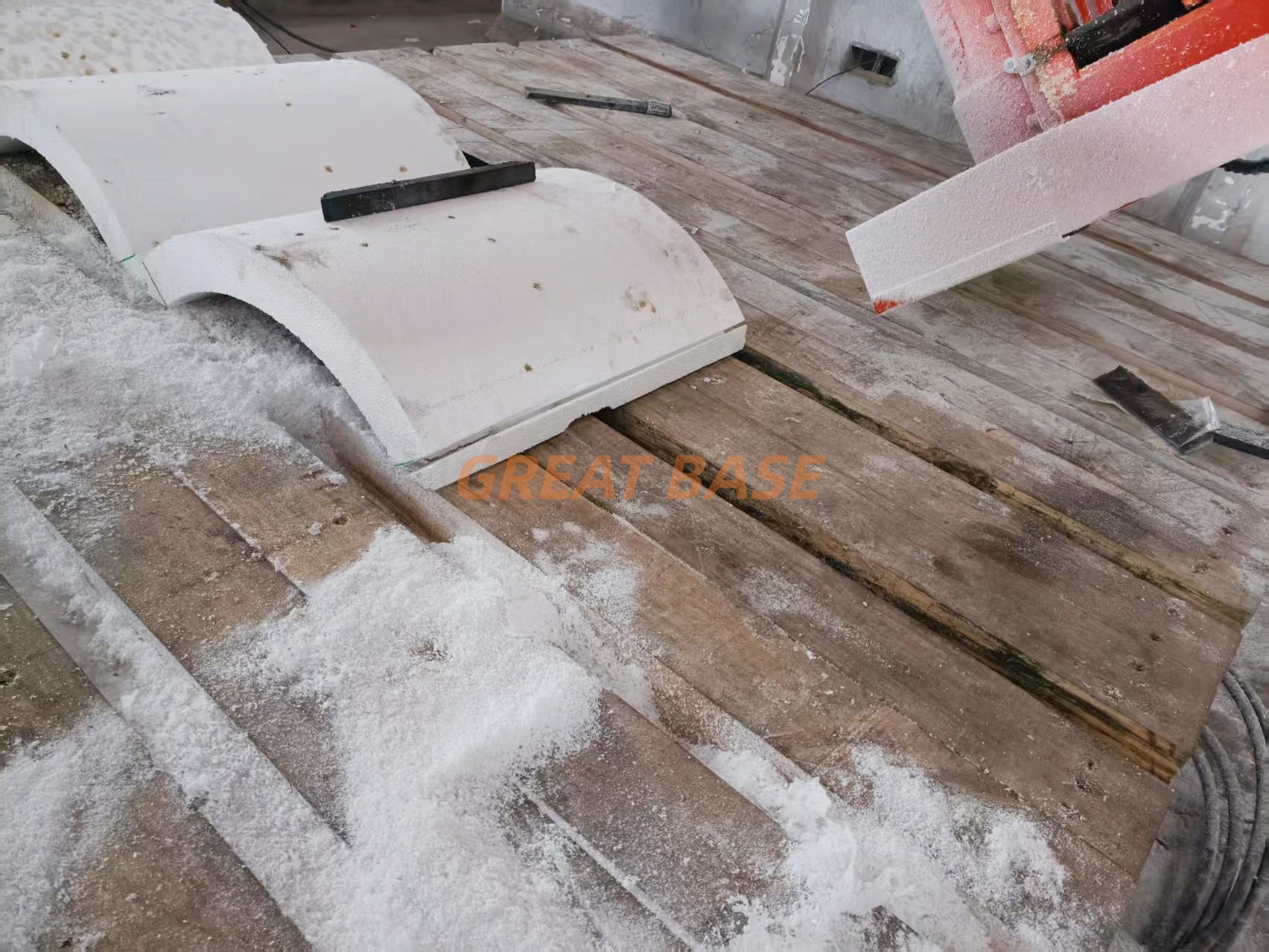

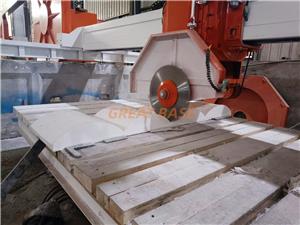

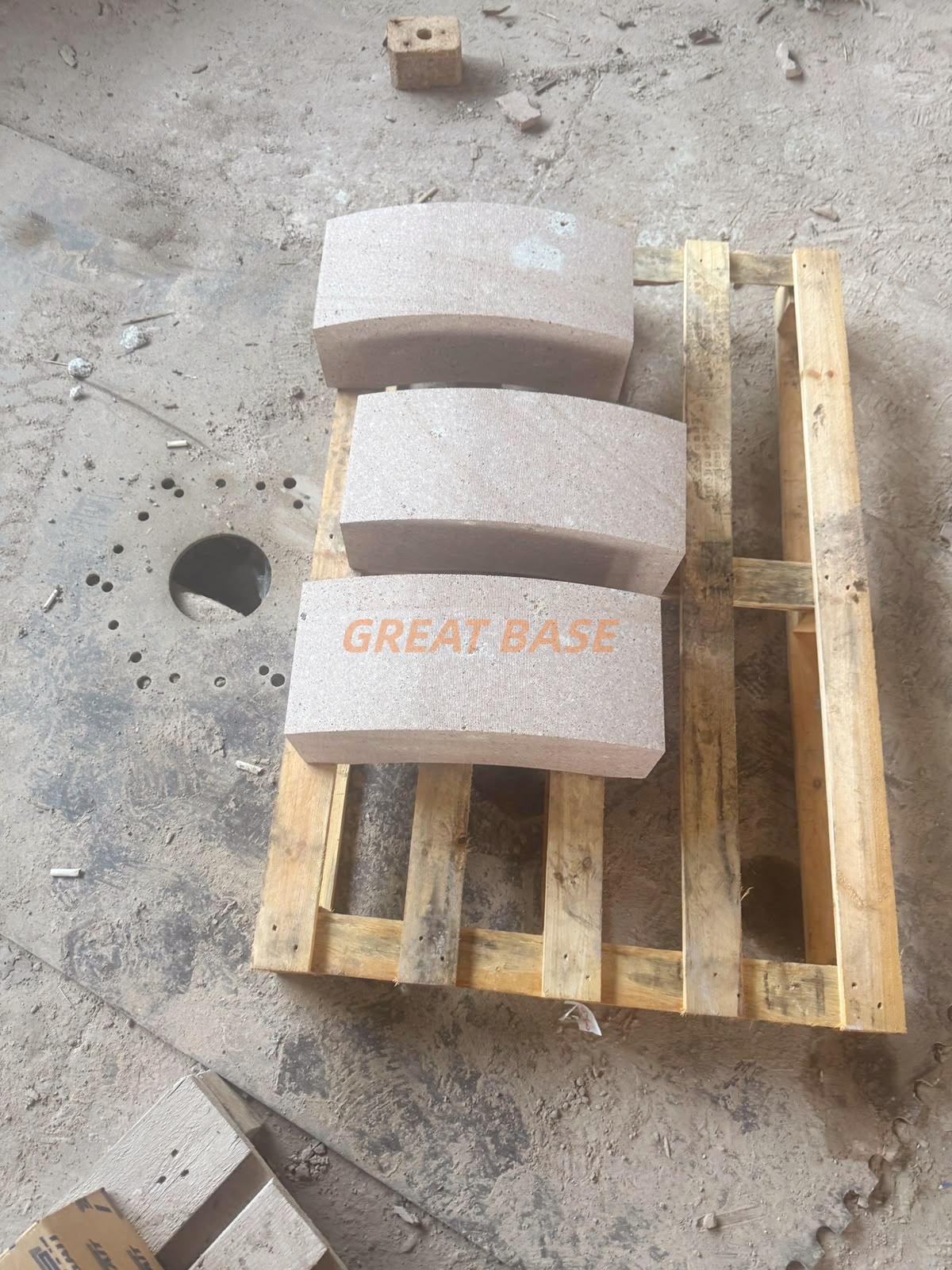

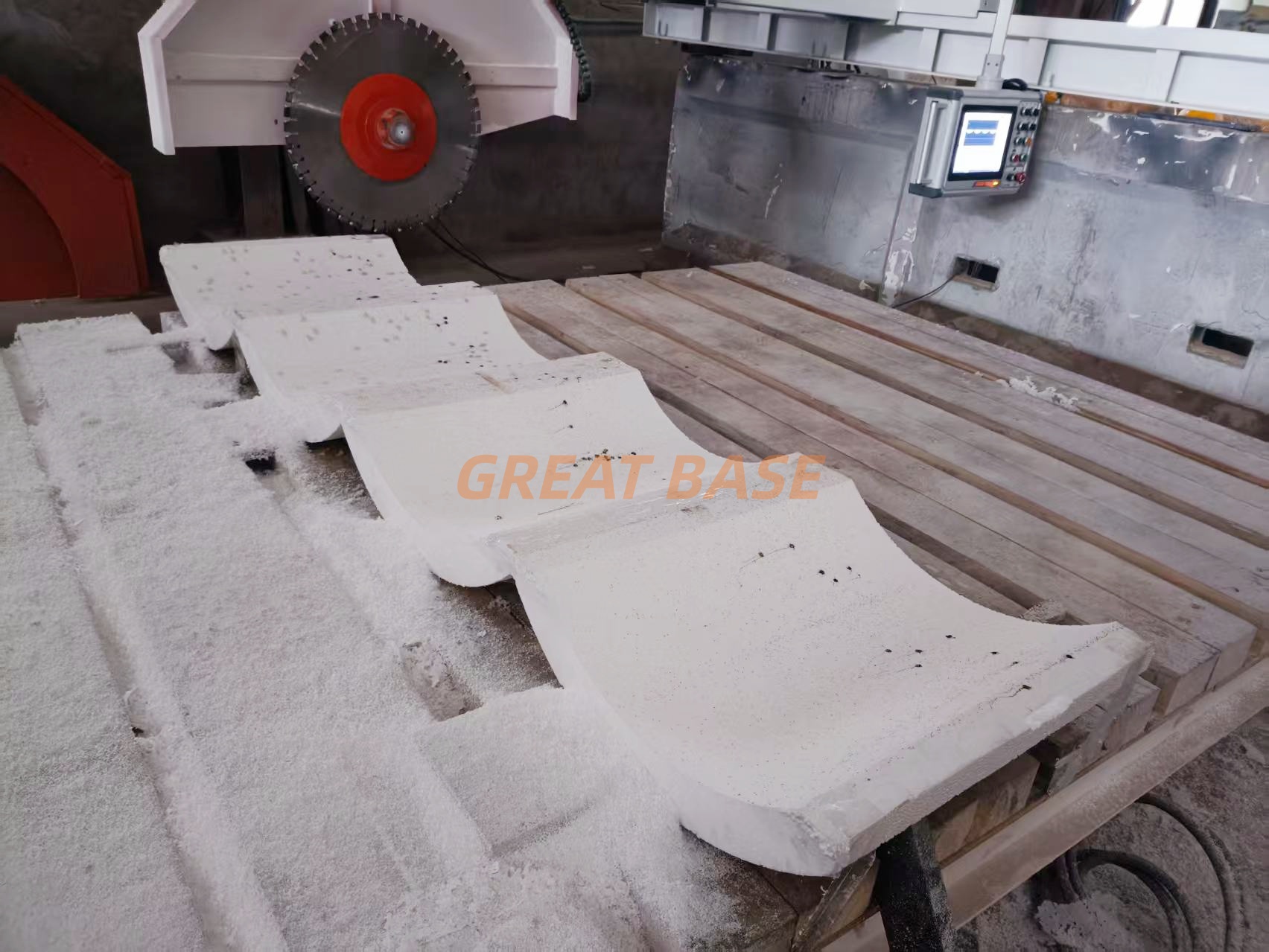

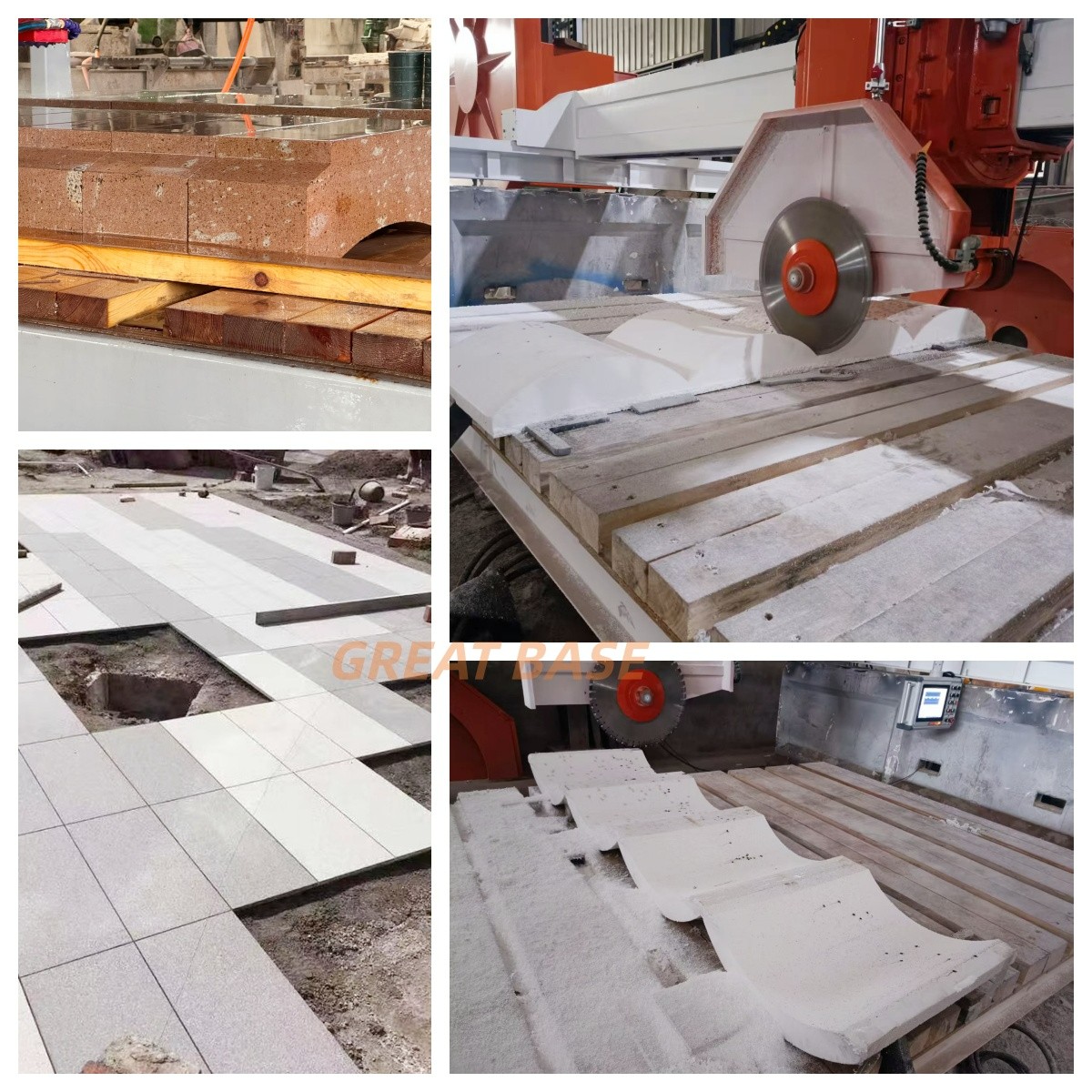

Greatbase GBHW-900t we will adopt 4sets servo motor in this machine, cutter head rotating also be with servo motor, so it will be 4 axis bridge saw, with big touch screen, CNC system , worktable can rotate 90degree, can do slab cutting, GB machine also can do profiling, cutter head rotating also can set to stop at any angle to do 45degree cutting . Great Base machine Total machine is heavy duty, good for cutting thick slab, profiling in stone, even can do radius kerbstone, arc shape slab.

About Us

Xiamen Great Base Co.,LTD,We are a professional enterprise specializing in the production and operation ofstone processing machinery and equipment.We mainly provide various processing machinery and equipmentin stone factories,as wellas a complete set of stone mining plans,construction and expansion of stone processingfactories of differentsizes.The main products include;GBHW series four axis/five axis CNCbridge cutting machine/bridgeedge cuttingmachine,GBQQJ series gantry bridge hydraulicmulti blade stone cutting machine,GBLMseries Gantrytype cutting machine,GBHW series Mono block bridge cutting machine,3-axis machining center,GBDM Polishing machine series,etc.The product has superior performance and reasonable structure,and canprovide the mostsuitableequipment solution accordig to customer needs.The main personnel of the companyhave beenengaged in the stone machine industry for nearly 20 years,exported to more than 70 countries andregionsaround the world.We take part in several international professional stone exhibitions,serving nearly10000customers.We hope we can work together and grow together with all of new and old friends in all overtheworld.Any inquiry anyquestion,please call/email us,and we also warmly invite you to visit us,we hope we can worktogether to get WIN=WINsituation.Any inquiry will be welcome

Prouduct informarion

This machine, we will adopt 4sets servo motor in this machine, cutter head rotating also be with servo motor, so it will be 4 axis bridge saw, with big touch screen, CNC system , worktable can rotate 90degree, can do slab cutting, also can do profiling, cutter head rotating also can set to stop at any angle to do 45degree cutting . Total machine is heavy duty, good for cutting thick slab, profiling in stone, even can do radius kerbstone, arc shape slab.

Technical Specifications

Name	Unit	GBHW-900T
Worktable rotation angle	°	360° (worktable can stop at 0, 45, 90, 135, 180, 270, 360 degree)
Max.Blade diameter	mm	From D.800 to D.950mm
Main motor	kw	22kw (with 30KW inverter, so you can change blade from D.600 to D.950mm)
Max cutting size(L*W)	mm	3000×2000
Cutter head up/down stroke	mm	650mm , we can make sure you can install D.600mm to D.950mm blade, up/down stroke is enough. And up/down by double ball screw, by servo motor
Main shaft in head stock	mm	D.80mm, more heavy duty bearings inside, so you can install thick saw blade to profiling
Dimensions (LWH)	mm	5800×5400×3600mm (this kind machine, the right/left rails is longer 5400mm, common bridge saw is 4700mm)
Weight	kg	About 5300

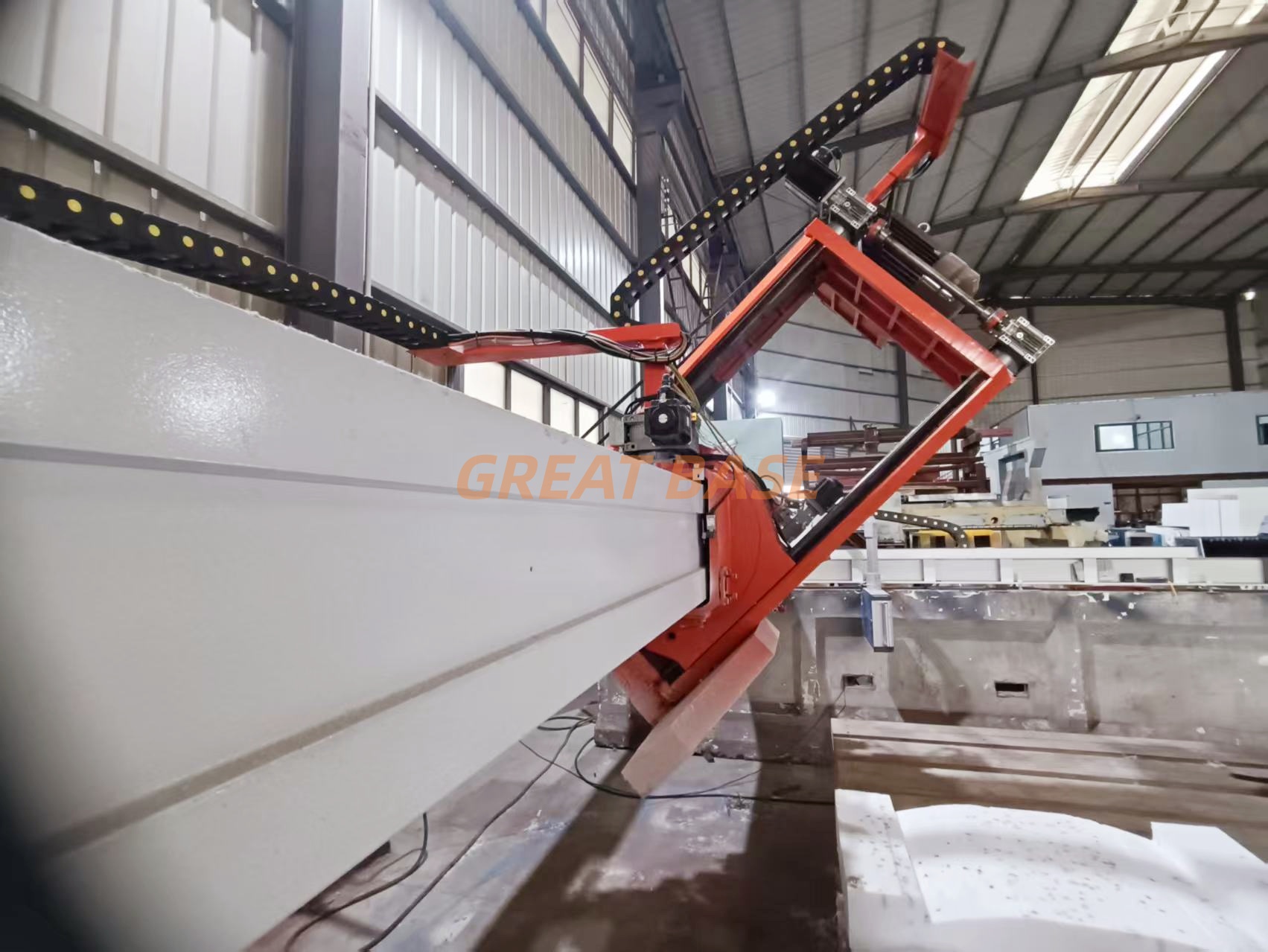

Blade tilting angle	°	0°~ 45° by servo motor, so you can set cutter head rotating angle according to your drawing
