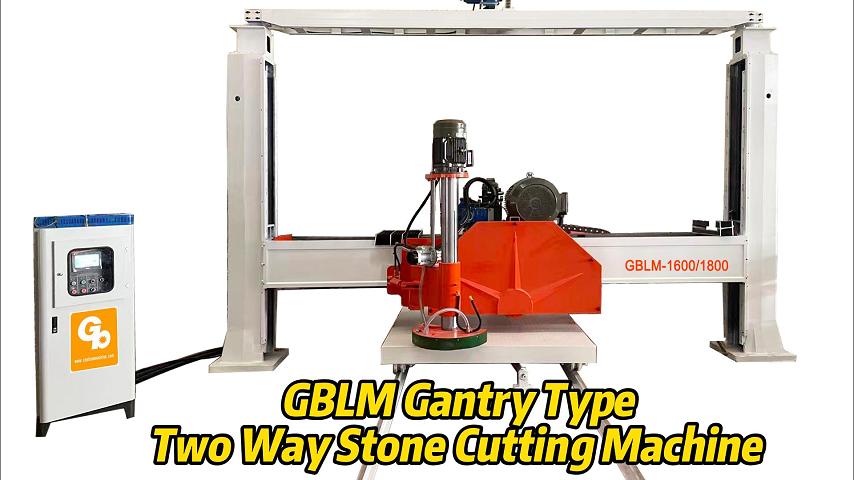

Great Base GBLM-1600 Gantry Type Two Way Stone Cutting Machine Marble Sandstone Soft Stone Cutter
- Great Base
- China
- 30 days
- 20sets per month
GBLM-1600 Gantry Type Two Way Stone Cutting Machine Marble Sandstone Soft Stone Cutter is produced by GB machine Chinese manufacturer This machine is gantry type with long up/down stroke structure, can process Max.200omm height block, ismainly for cutting marble, sandstone, limestone this kind soft material or can make to order to the machine can cut both marble and granite block.
About Us
Xiamen Great Base Co.,LTD,We are a professional enterprise specializing in the production and operation ofstone processing machinery and equipment.We mainly provide various processing machinery and equipmentin stone factories,as wellas a complete set of stone mining plans,construction and expansion of stone processingfactories of differentsizes.The main products include;GBHW series four axis/five axis CNCbridge cutting machine/bridgeedge cuttingmachine,GBQQJ series gantry bridge hydraulicmulti blade stone cutting machine,GBLMseries Gantrytype cutting machine,GBHW series Mono block bridge cutting machine,3-axis machining center,GBDM Polishing machine series,etc.The product has superior performance and reasonable structure,and canprovide the most suitable equipment solution accordig to customer needs.The main personnel of the company have been engaged in the stone machine industry for nearly 20 years,exported to more than 70 countries andregions around the world.We take part in several international professional stone exhibitions,serving nearly10000 customers.We hope we can work together and grow together with all of new and old friends in all over the world.Any inquiry anyquestion,please call/email us,and we also warmly invite you to visit us,we hope we can worktogether to get WIN=WINsituation.Any inquiry will be welcome
Prouduct informarion
This machine is gantry type with long up/down stroke structure, can process Max.200omm height block, is mainly for cutting marble, sandstone, limestone this kind soft material or can make to order to the machine can cut both marble and granite block.
Technical Specifications
| Name | Unit | GBLM-1600 |
| Max vertical blade size | mm | 1600 |
| Max cutting size | mm | 3200*1500*1800 or 3200*1800*2000 |
| Max horizontal disc diameter | mm | 400 |
| Horizontal disc motor | kw | 11 |
| Up and down motor | kw | 5.5 |
| Main motor | kw | 65/75/90 |
| Trolley table size | mm | single layer table ,can't rotate 2000*2000 |
| Weight | kg | about 10000 |
| Overall dimension | mm | 6500*6500*5400 |

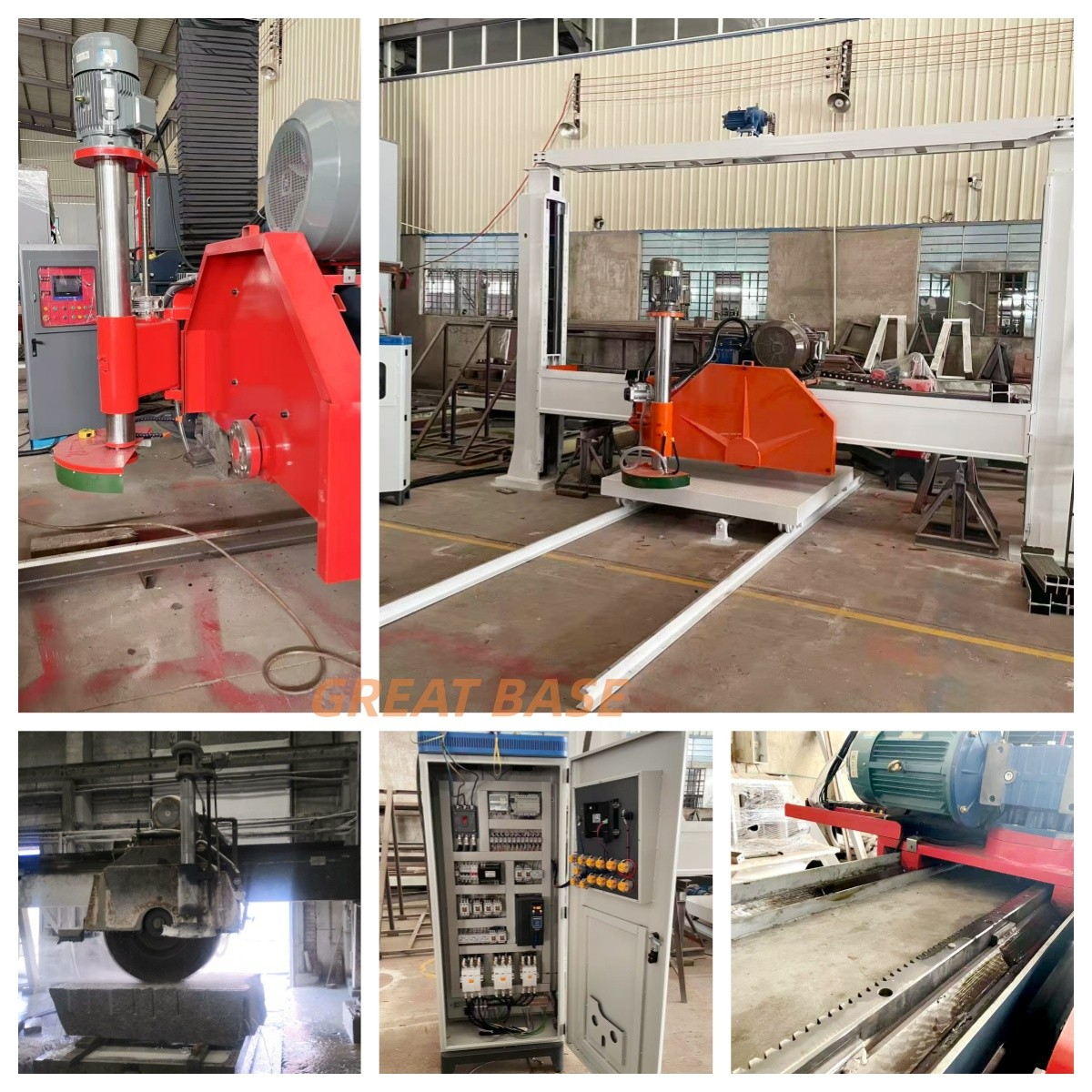

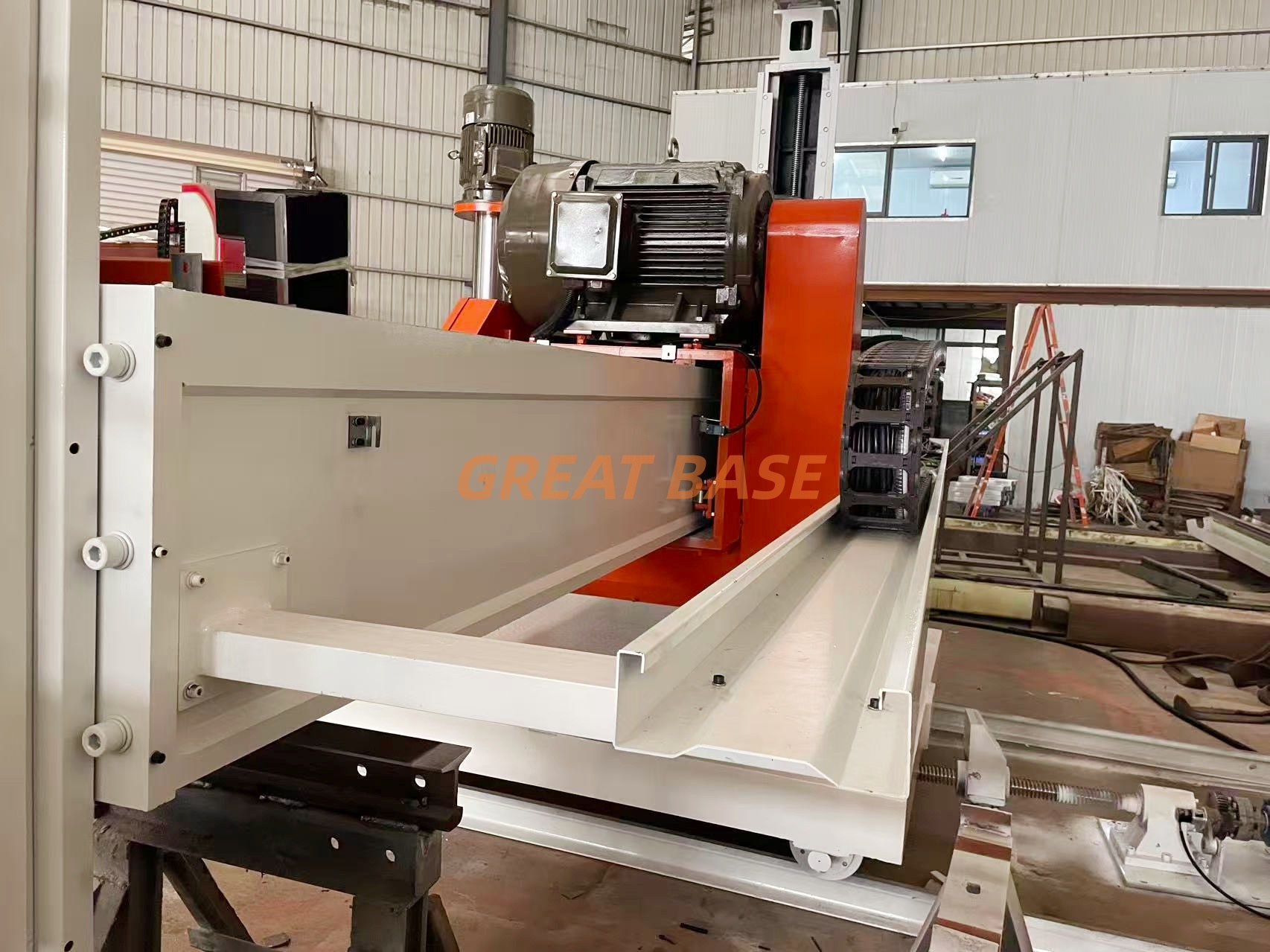

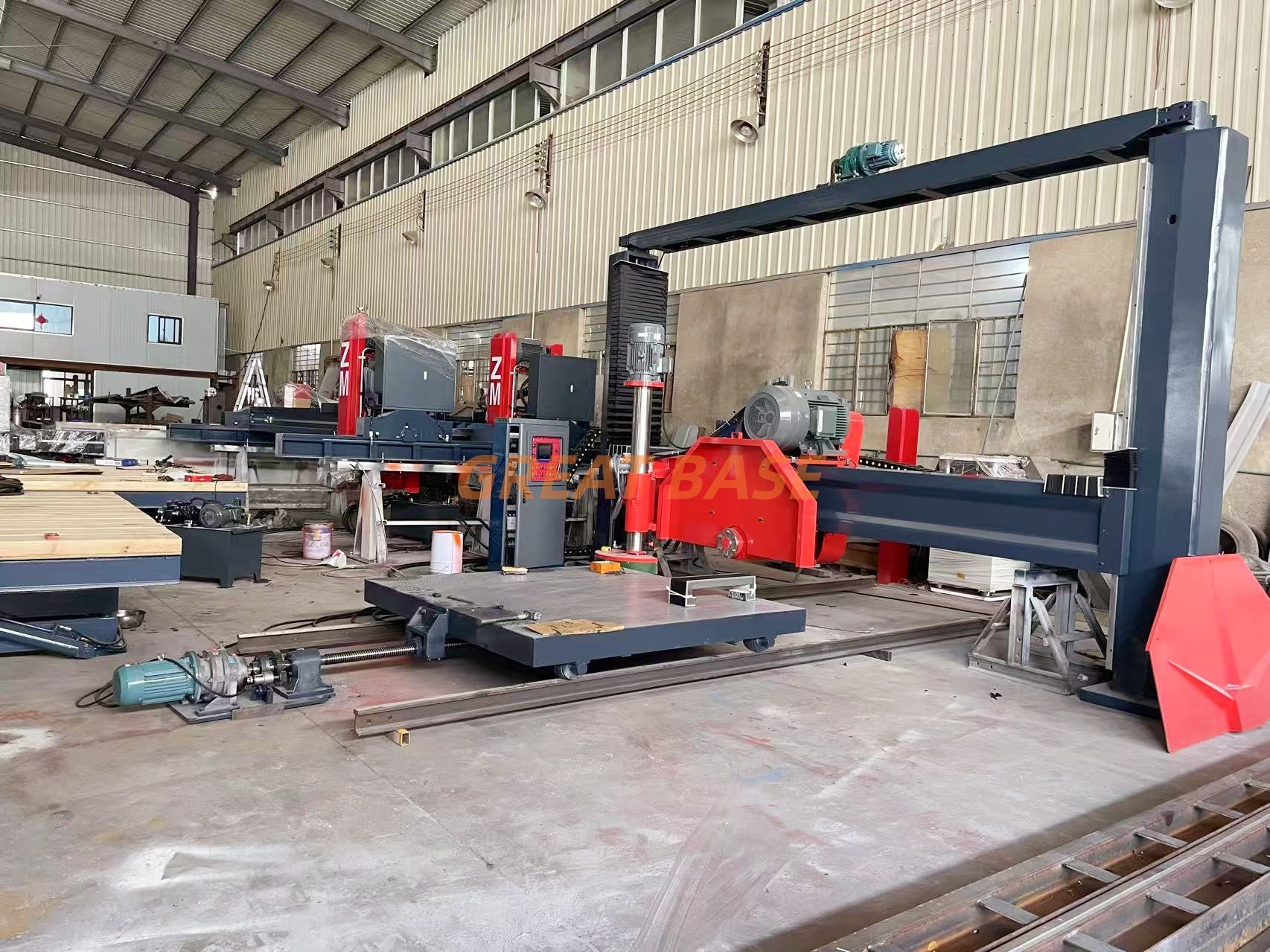

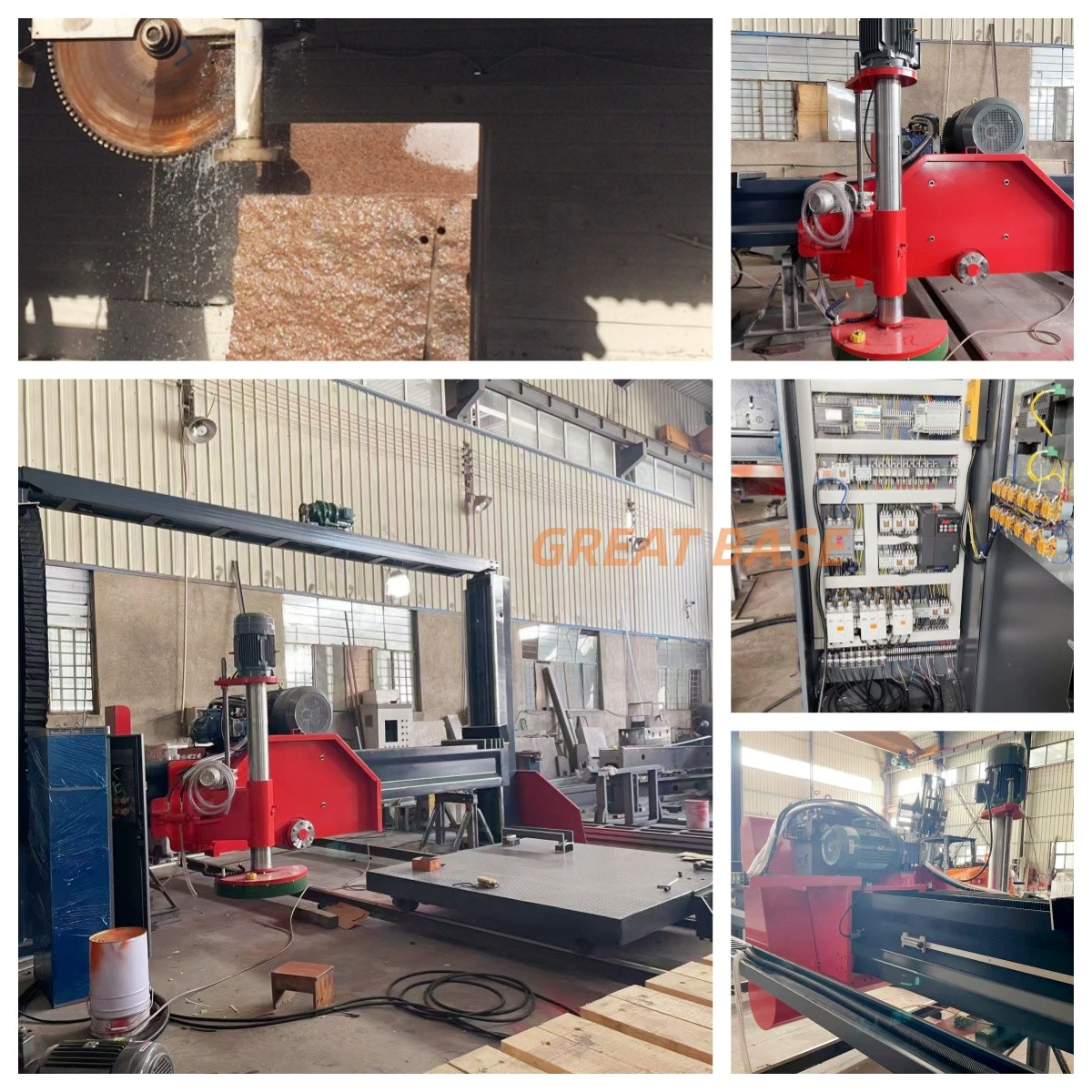

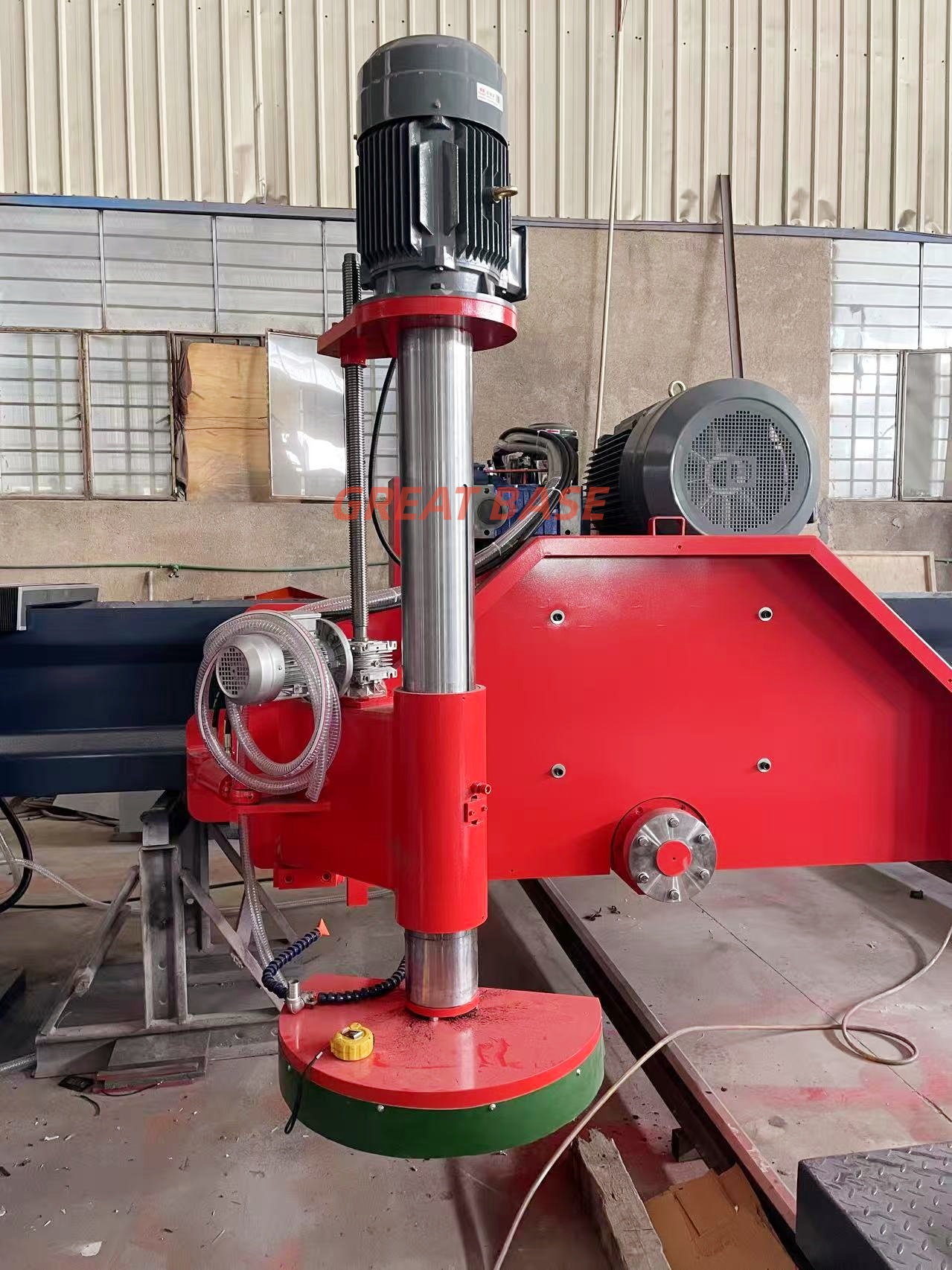

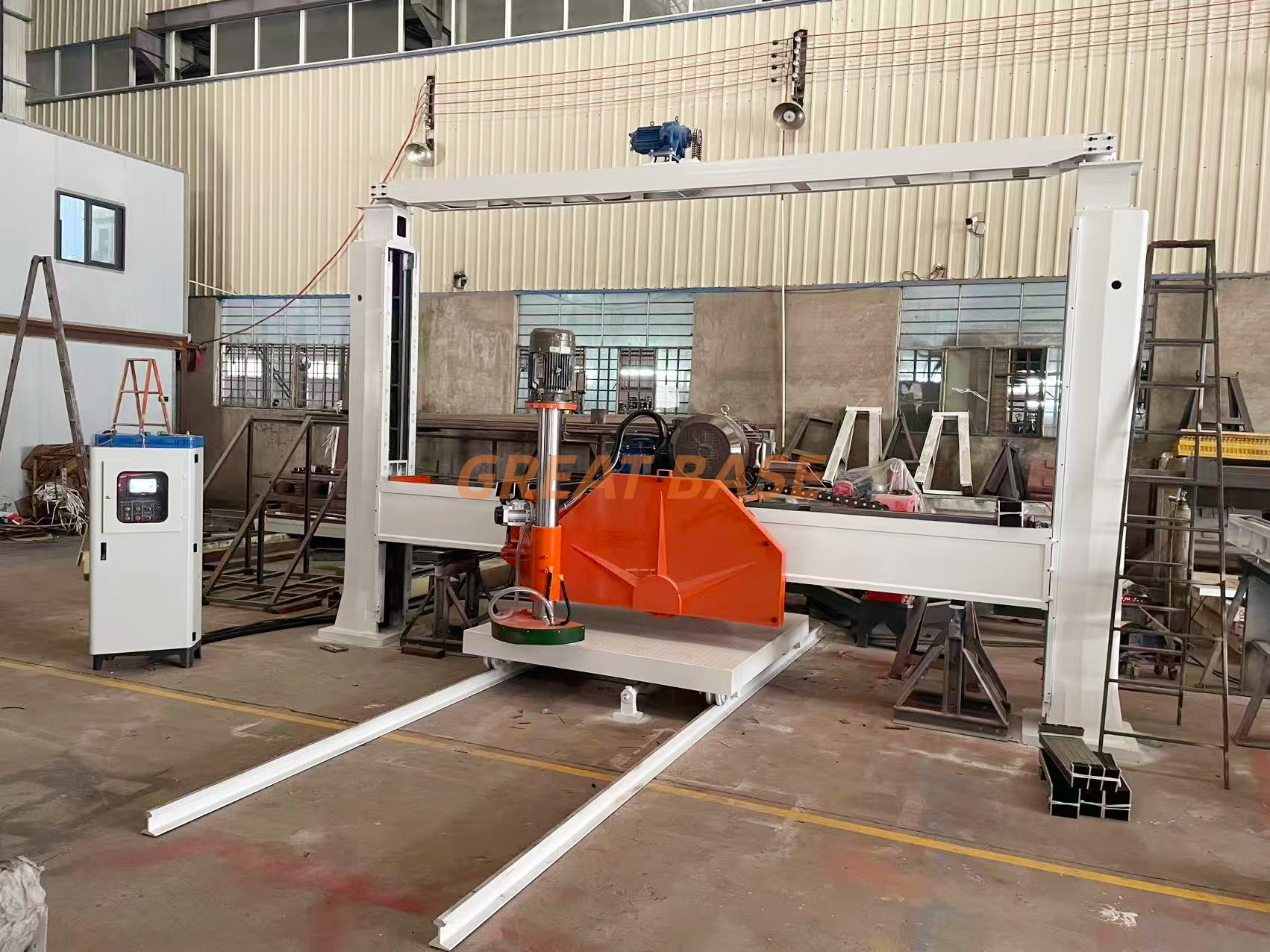

Product display

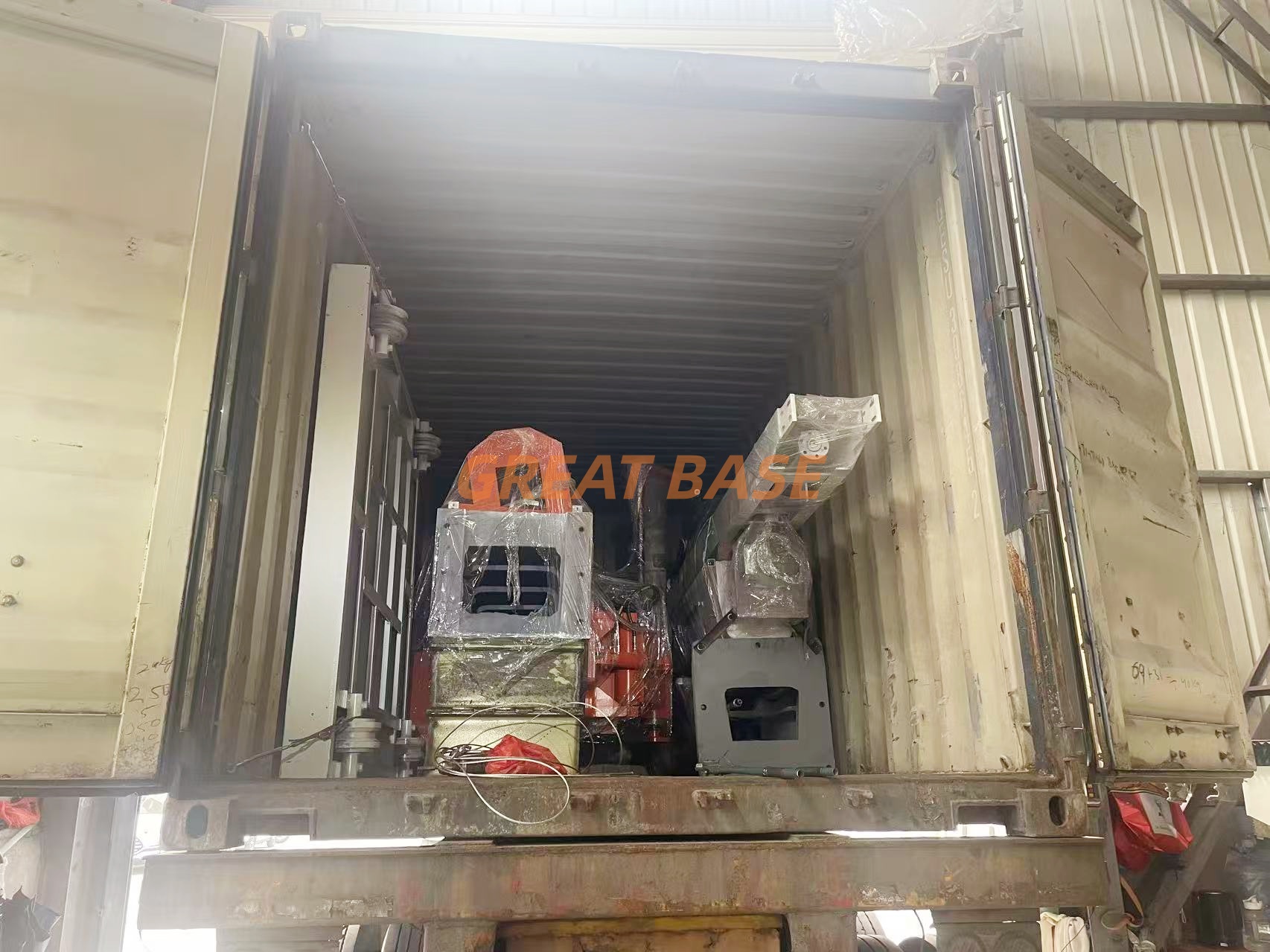

Factory container loading display


Exhibition display
