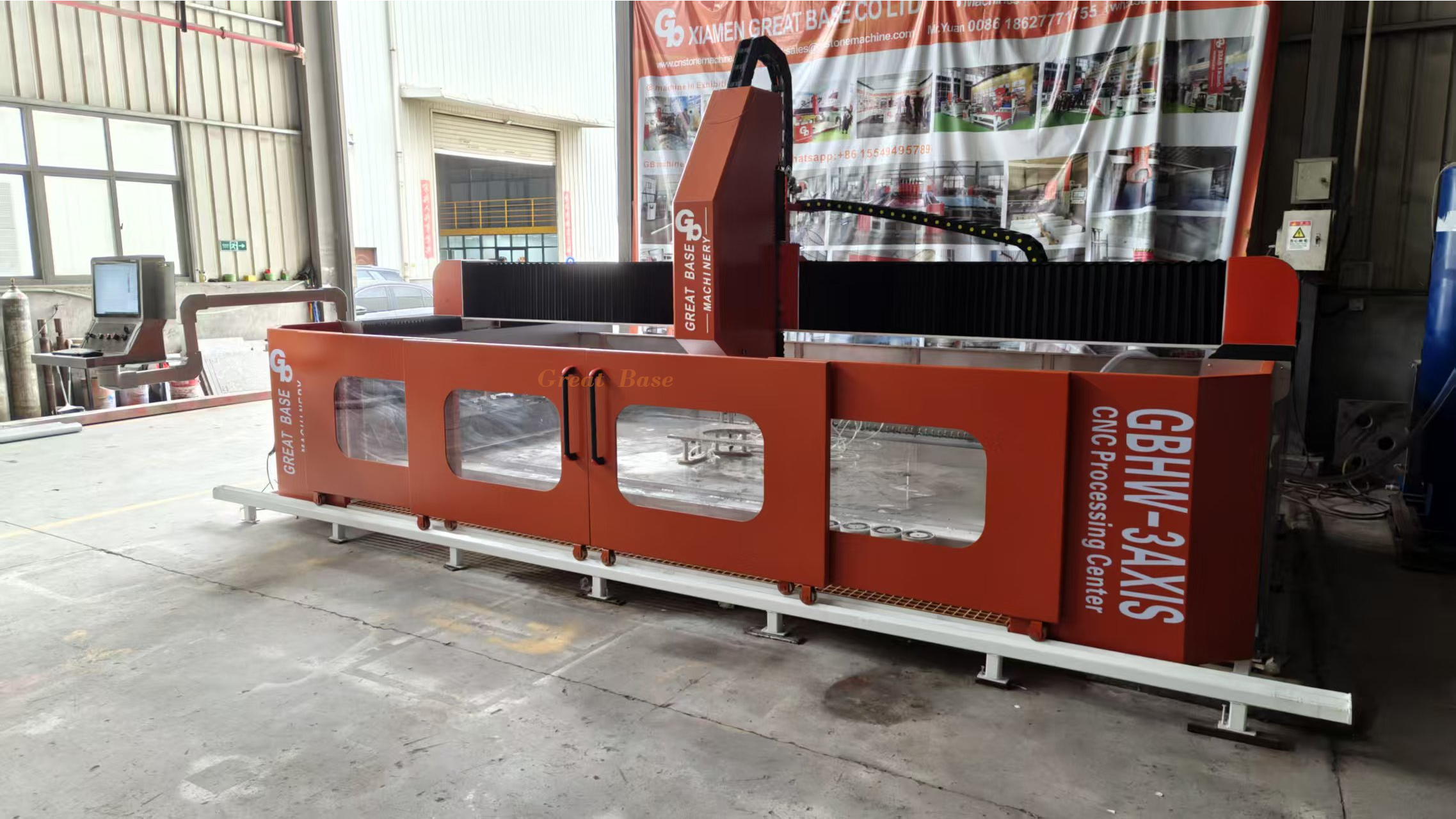

GBHW-3AXIS CNC PROCESSING CENTER
- Great Base
- China
- 30 days
- 20sets per month
GBHW 3 Axis CNC Processing Center delivers precise stone cutting, engraving & drilling. Ideal for countertop fabrication, ensures high accuracy. Rigid frame, ready stock.
About Us
Xiamen Great Base Co.,LTD,We are a professional enterprise specializing in the production and operation ofstone processing machinery and equipment.We mainly provide various processing machinery and equipmentin stone factories,as wellas a complete set of stone mining plans,construction and expansion of stone processingfactories of differentsizes.The main products include;GBHW series four axis/five axis CNCbridge cutting machine/bridgeedge cuttingmachine,GBQQJ series gantry bridge hydraulicmulti blade stone cutting machine,GBLMseries Gantrytype cutting machine,GBHW series Mono block bridge cutting machine,3-axis machining center,GBDM Polishing machine series,etc.The product has superior performance and reasonable structure,and canprovide the most suitable equipment solution accordig to customer needs.The main personnel of the company have been engaged in the stone machine industry for nearly 20 years,exported to more than 70 countries andregions around the world.We take part in several international professional stone exhibitions,serving nearly10000 customers.We hope we can work together and grow together with all of new and old friends in all over the world.Any inquiry anyquestion,please call/email us,and we also warmly invite you to visit us,we hope we can worktogether to get WIN=WINsituation.Any inquiry will be welcome
Prouduct informarion
This machine is our 3 axis processing center,it is with chinese 3 axis sofware and servo motor/driver system,widely used for processing different shape stone product,table top,countertops,circle shape and different,can do miling the shape,and profile the edge.
Technical Specifications
| Name | Unit | GBHW-3axis-3015 | GBHW-3axis-3518 | |
| Max working size | mm | 3000*1500 | 3500*1800 | |
| axis stroke | mm | 420 | 420 | |
| Max speed(XY) | m/min | 25 | 25 | |
| Max speed(Z) | m/min | 5 | 5 | |
| Accuracy | mm | ±0.02 | ±0.02 | |
| Main Spindle power | kw | 11 | 11 | |
| Rpm | rpm | 0--15000 | 0--15000 | |
| Tools hodler | pcs | 14 | 14 | |
| Vaccum suction cup | pcs | 6 | 6 | |
| Overall size | mm | 5500*2900*2100 | 5800*3200*2100 | |
| Weight | kg | 4500 | 5000 |

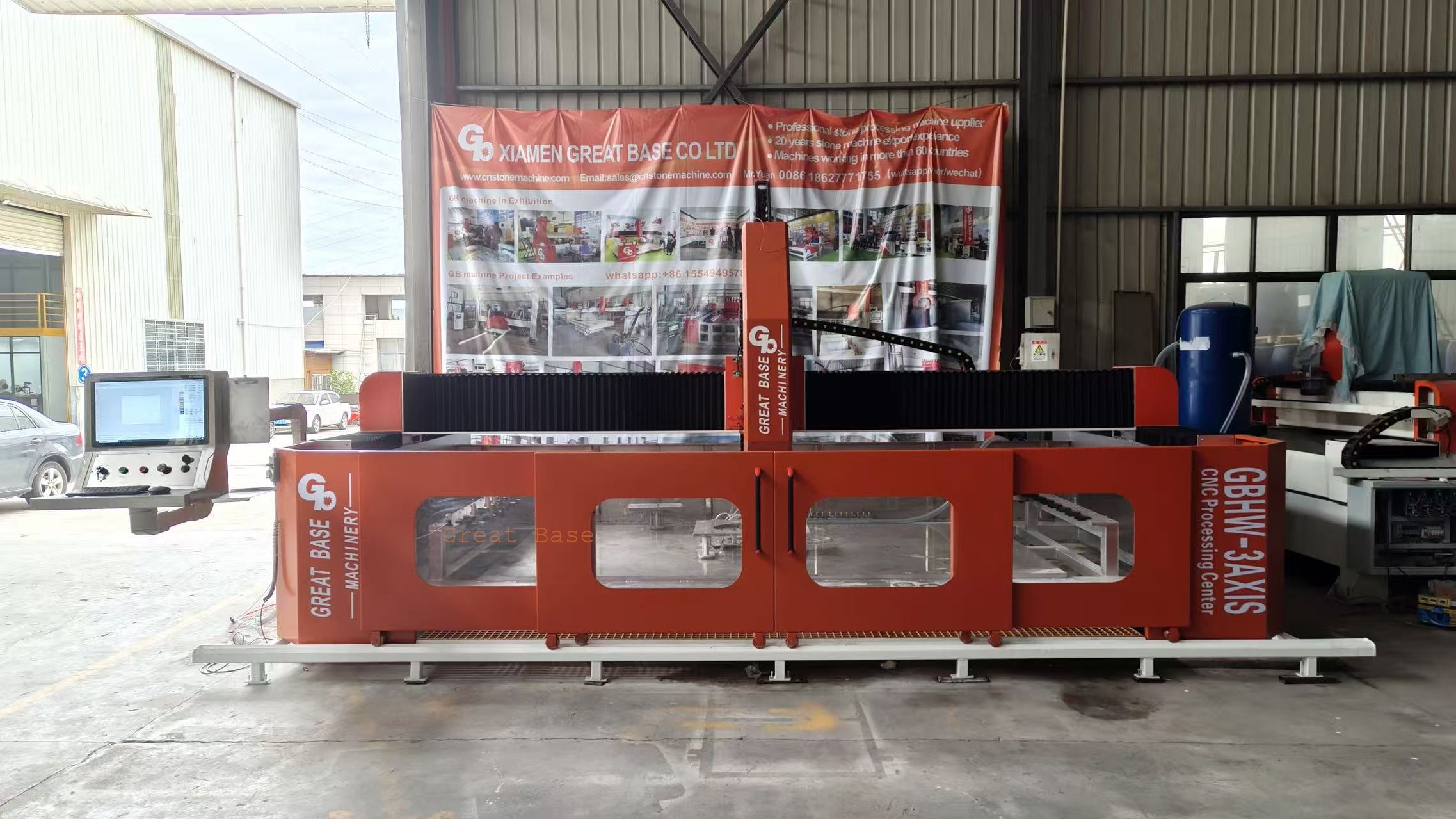

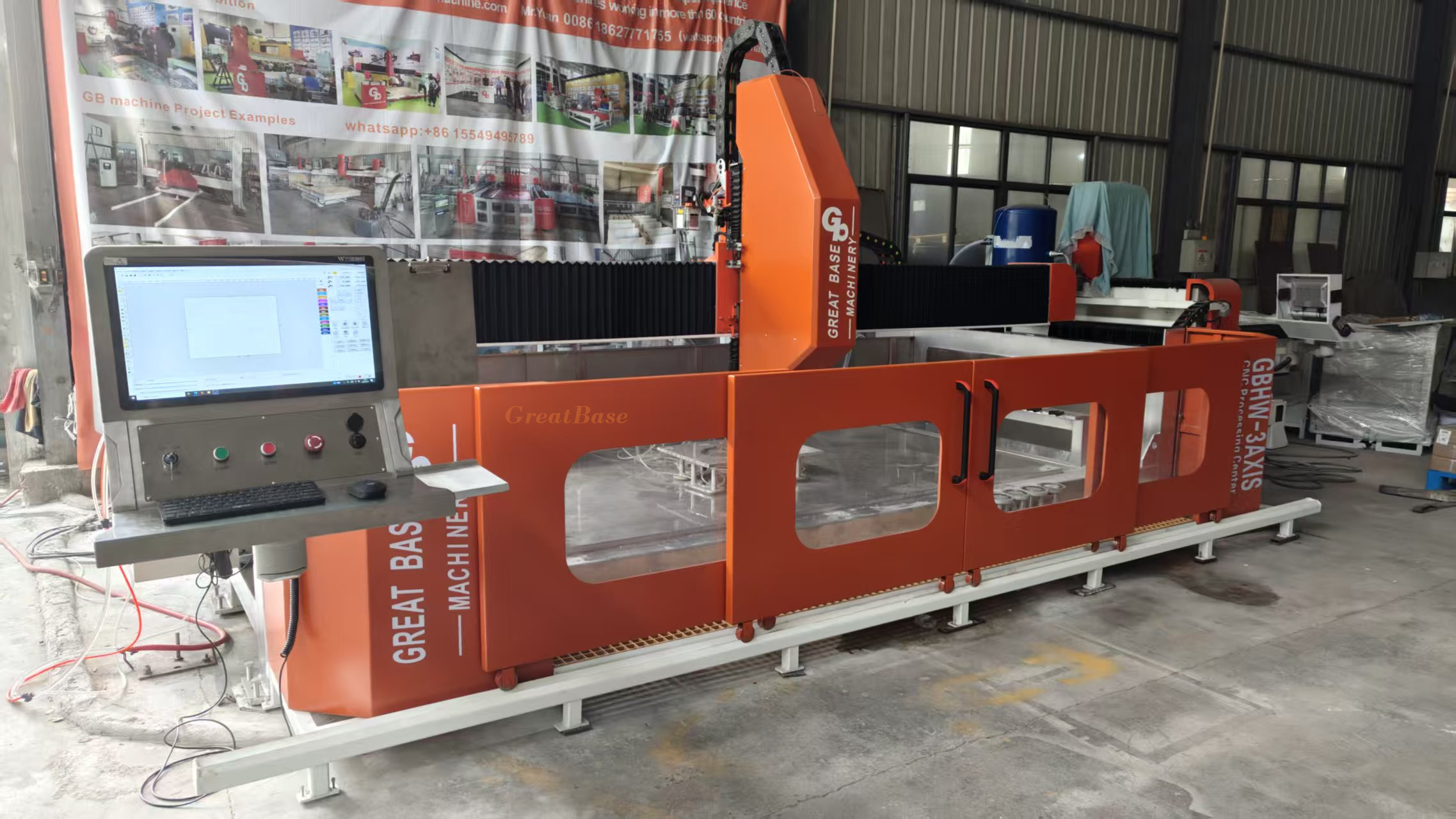

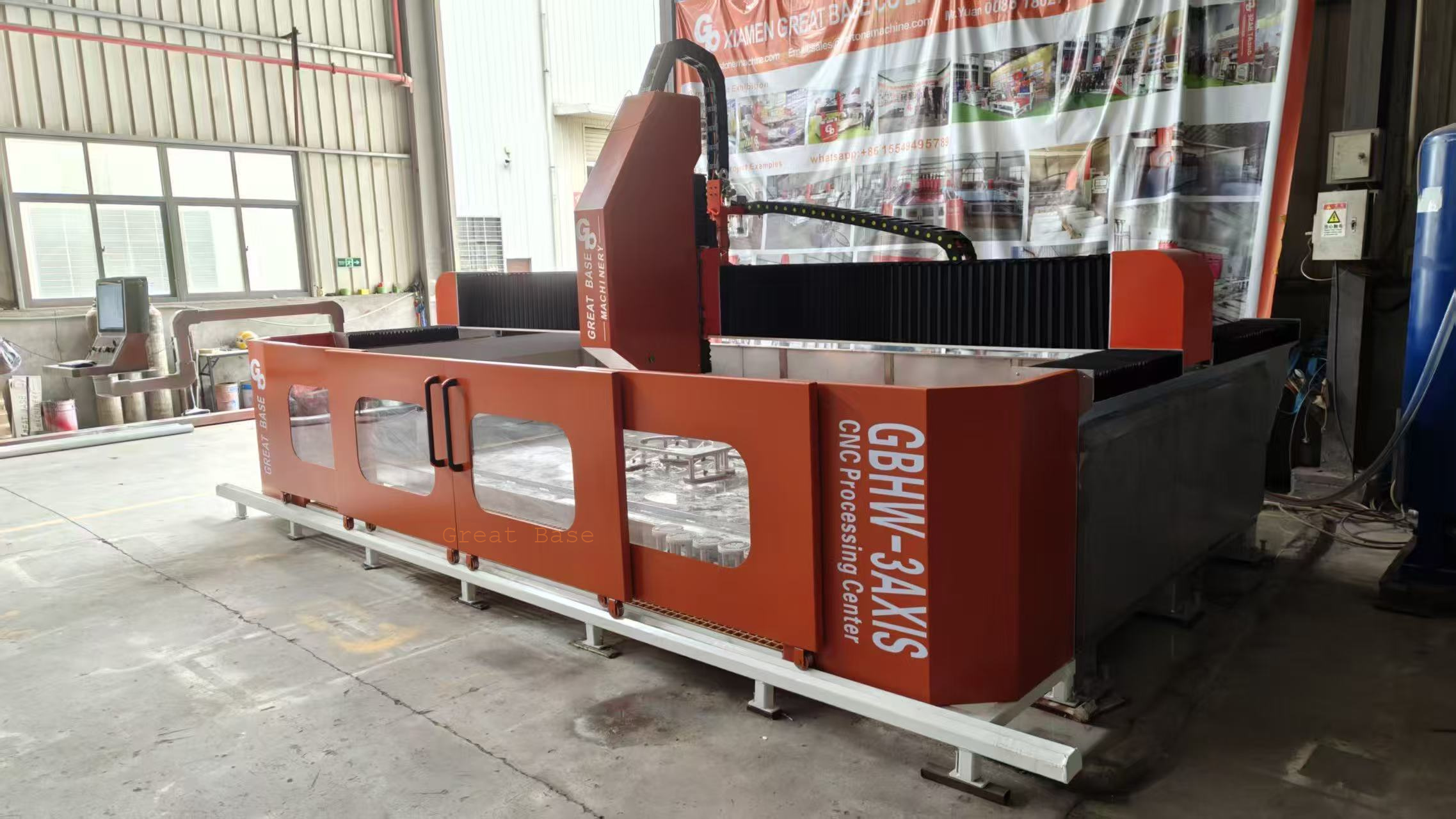

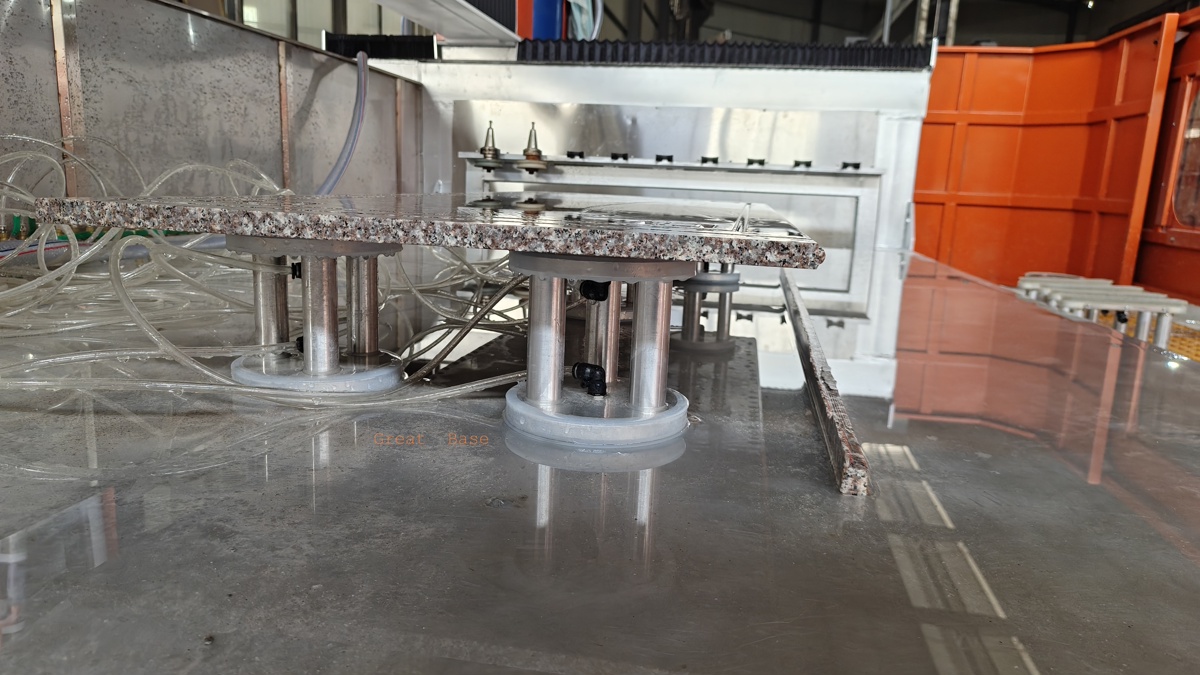

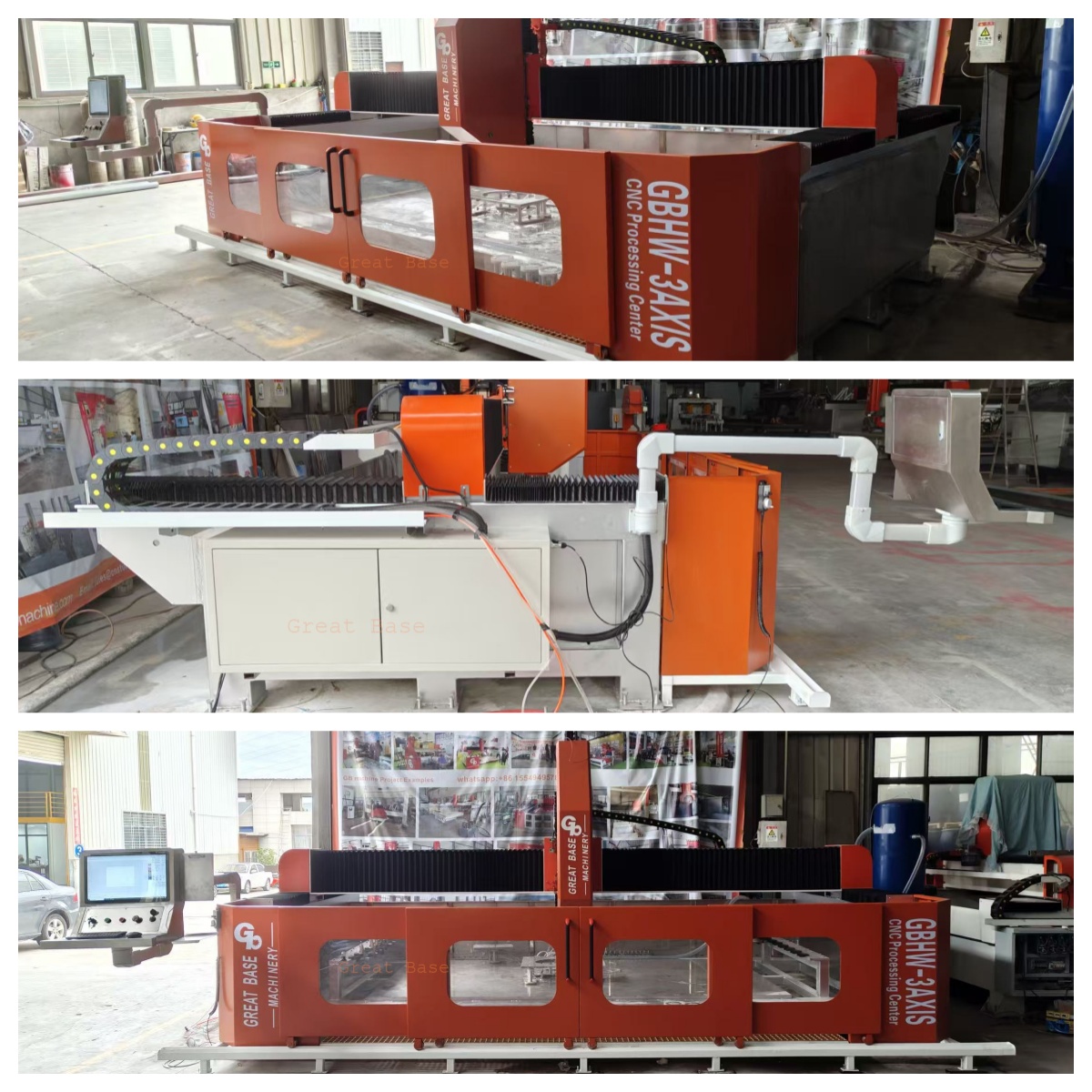

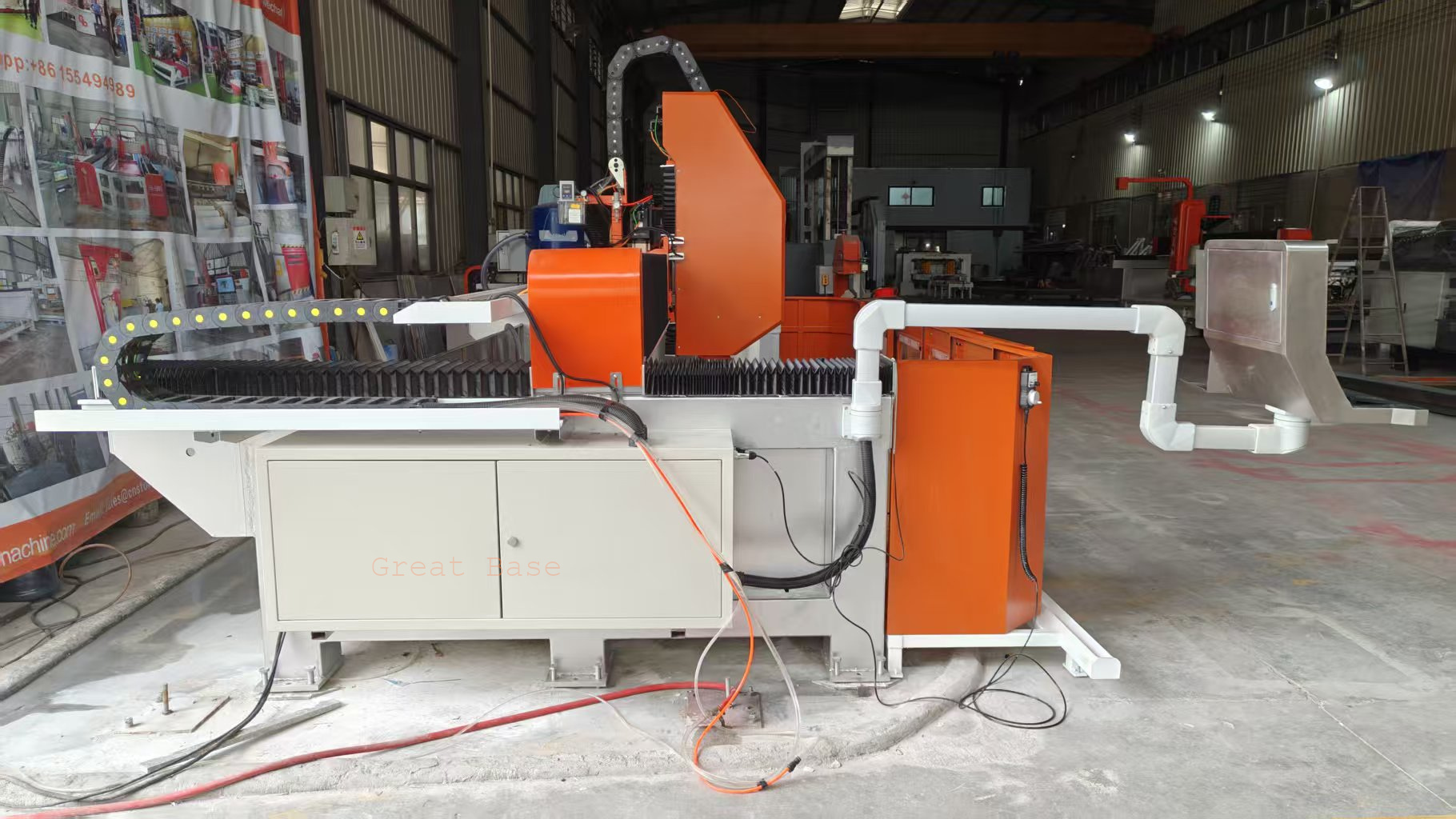

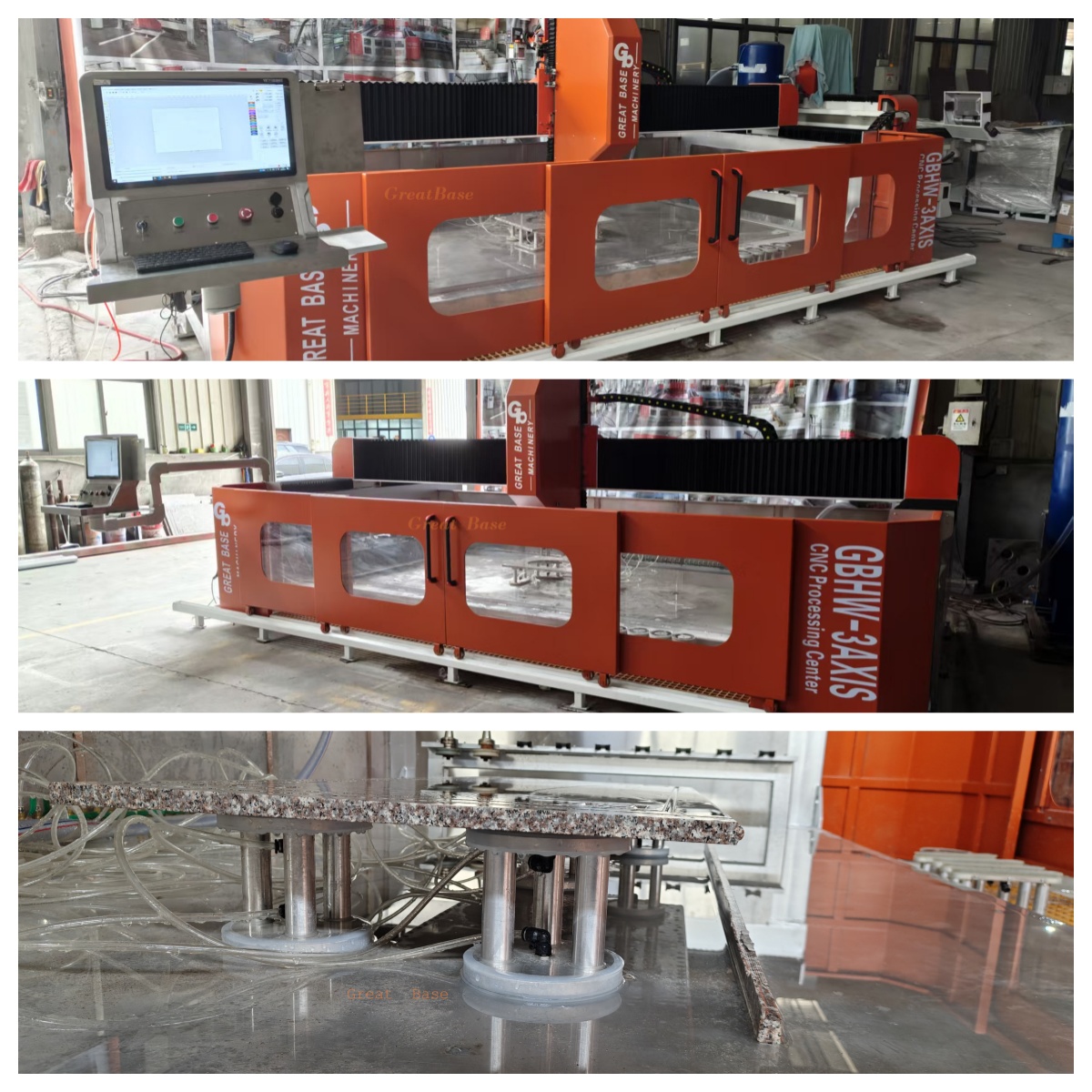

Product display


Factory container loading display


Exhibition display
