Single Arm Block Levering Machine GBX-1500

  • Single Arm Block Levering Machine GBX-1500 Manufacturers, Single Arm Block Levering Machine GBX-1500 Factory, Supply Single Arm Block Levering Machine GBX-1500
Single Arm Block Levering Machine GBX-1500
  • Great Base
  • CHINA
  • 30 days
  • 20sets per month

Single Arm Block Levering Machine is manufactured by us, widely used in marble and granite processing factory, it is mainly for granite or marble blocks surface levering, then processed blocks will be for next block cutting, such as Marble Gang saw, Multi wire saw, Great Base (GB machine )GBQQJ-2500 series Multi saw blade disc block cutter. That can save block cutter's tools consumption, and raised the radio of final slab production. Widely used in Egypt, Saudi Arabia, Vietnam, India, and other area.

Single Arm Block Levering Machine is for levering the surface of block to be flat, and easy for next block cutting machine processing. such as Marble Gang saw, Multi wire saw, Great Base (GB machine )GBQQJ-2500 series Multi saw blade disc block cutter. That can save block cutter's tools consumption, and raised the radio of final slab production. Widely used in Egypt, Saudi Arabia, Vietnam, India, and other area.

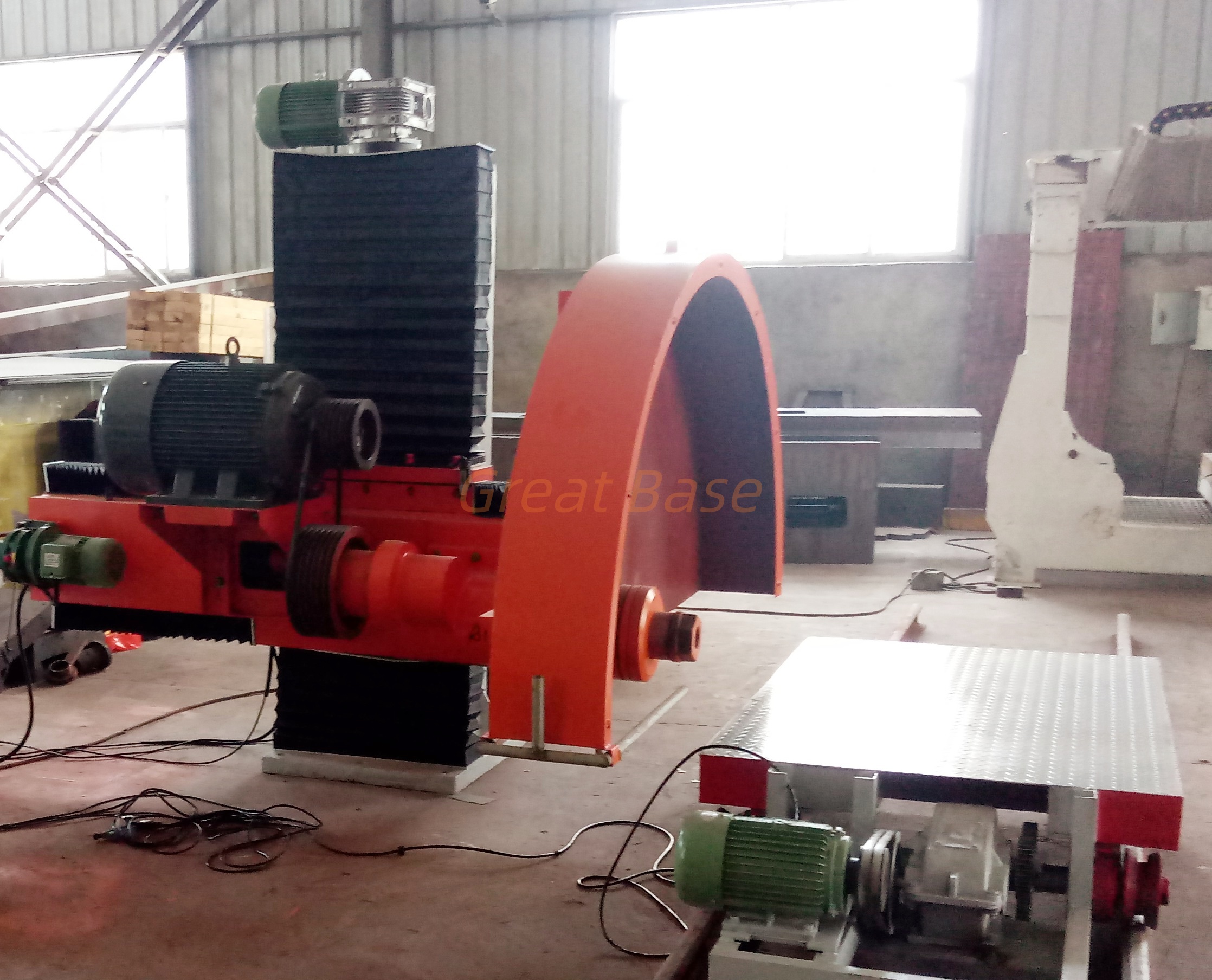

GBX-1500 Levering Machine is very simple structure, the cutter head up/down on the column by leadscrew, and it can move horitontal by leadscrew, whole machine is with four pieces wheels under the up/down column, GBX-1500 Levering Machine moving on the rails, so saw blade can cut the surface of blocks.

We have optional, client can buy the machine with block turnning table or without, if with turning table, after you processed one surface of block, then turn the block to another side to cut.


Name


GBX-1500

Saw blade size

mm

1500

Max.processing height

mm

2200

Main motor

kw

22

Max.cutting length

mm

4200

Dimensions

mm

7500x4200x2200

Weight

kg

4000
